Product CatalogPart Number
M15KP45A
Manufacturer
MDE Semiconductor IncDescription
TVS DIODE UP 45VRWM 72.8VC
Datasheet
DatasheetPackage
P600, Axial
In Stock
36,867 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

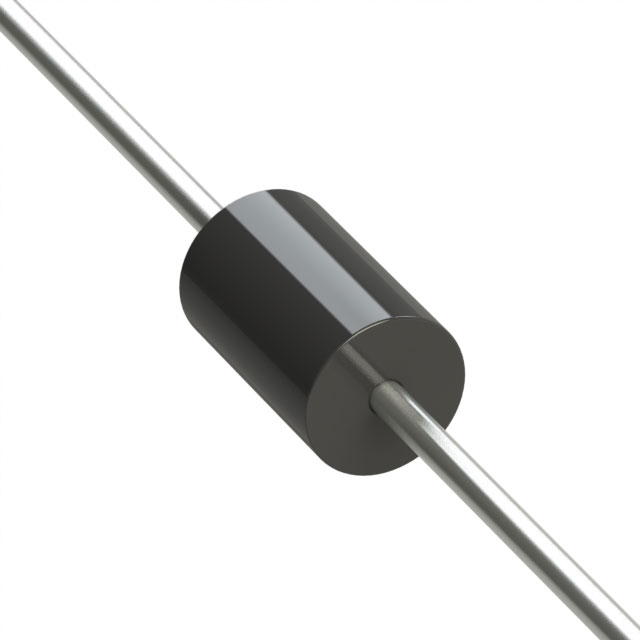

M15KP45A
M15KP45A
lmages are for reference only.Payment Methods
Delivery Services
72.8V Clamp 207.4A Ipp Tvs Diode Through Hole P600
Quick Inquiry
M15KP45A
Specifications
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | MDE Semiconductor Inc |
| Series | M15KP |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 45V |
| Voltage - Breakdown (Min) | 50.3V |
| Voltage - Clamping (Max) @ Ipp | 72.8V |
| Current - Peak Pulse (10/1000µs) | 207.4A |
| Power - Peak Pulse | 15000W (15kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | P600, Axial |
| Supplier Device Package | P600 |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | M15KP45A | M15KP45A/TR | M15KP45AE3 | M15KP45AE3/TR |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | ||
| Description | TVS DIODE 45VWM 73VC DO204AR | TVS 45V 5% 15000W UNI | TVS DIODE 45VWM 73VC DO204AR | TVS 45V 5% 15000W UNI |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Bulk | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
