Product CatalogPart Number
M55-6103242R
Manufacturer
Harwin Inc.Description
CONN RCPT 1.27MM SMD 32POS R/A
Datasheet
DatasheetPackage
-
In Stock
62,767 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
M55-6103242R
M55-6103242R
lmages are for reference only.Payment Methods
Delivery Services

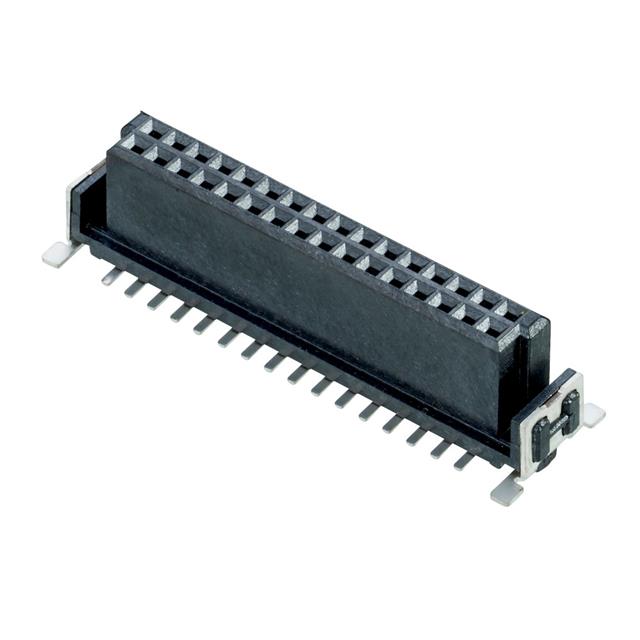

32 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold
Quick Inquiry
M55-6103242R
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Harwin Inc. |
| Series | Archer Kontrol |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 32 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Latch Holder |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.00µin (0.025µm) |
| Insulation Color | Black |
| Insulation Height | 0.145" (3.68mm) |
| Contact Length - Post | - |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Guide, Solder Retention |
| Current Rating (Amps) | 1.2A |
| Voltage Rating | 100VAC |
| Applications | Automotive, General Purpose, Industrial |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Contact Shape | Square |
| Contact Material | Phosphor Bronze |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Base Product Number | - |
