Product CatalogPart Number
M80-5S22642MC
Manufacturer
Harwin Inc.Description
13+13 POS. MALE DIL HORIZONTAL S
Datasheet
DatasheetPackage
-
In Stock
51,168 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
M80-5S22642MC
M80-5S22642MC
lmages are for reference only.Payment Methods
Delivery Services
Connector Header Surface Mount, Right Angle 26 position 0.079" (2.00mm)
Quick Inquiry
M80-5S22642MC
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Harwin Inc. |
| Series | Datamate L-Tek |
| Packaging | Bulk |
| RoHS Status | |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 26 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Surface Mount, Right Angle |
| Termination | Solder |
| Fastening Type | Screw Lock |
| Contact Length - Mating | - |
| Contact Length - Post | - |
| Overall Contact Length | - |
| Insulation Height | 0.238" (6.05mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Features | Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | - |
| Voltage Rating | 120VAC/DC |
| Mated Stacking Heights | - |
| Contact Finish Thickness - Post | 12.0µin (0.30µm) |
| Applications | - |
| Base Product Number | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | M80-5S22642MQ | M80-5S20605MQ | M80-5S20642MD | M80-5S20642MQ |
| Manufacturer | Harwin Inc. | Harwin Inc. | Harwin Inc. | Harwin Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

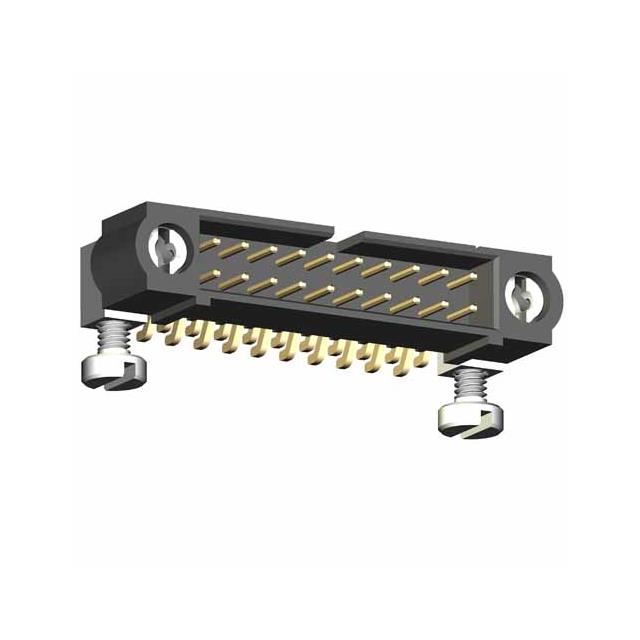

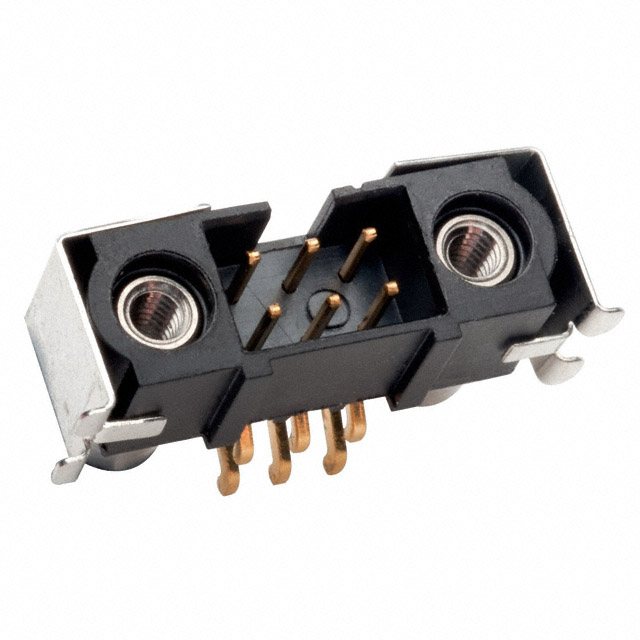

| Description | DATAMATE J-TEK DIL MALE HORIZONT | CONN HEADER SMD R/A 6POS 2MM | CONN HDR 2MM SMT R/A 6POS | DATAMATE J-TEK DIL MALE HORIZONT |
| Series | Datamate J-Tek | Datamate J-Tek | Datamate J-Tek | Datamate J-Tek |
| Packaging | Tube | Bulk | Tube | Tube |
