Product CatalogPart Number
M80-8220322
Manufacturer
Harwin Inc.Description
CONN HEADER VERT 3POS 2MM
Datasheet
DatasheetPackage
-
In Stock
36,460 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
M80-8220322
M80-8220322
lmages are for reference only.Payment Methods
Delivery Services

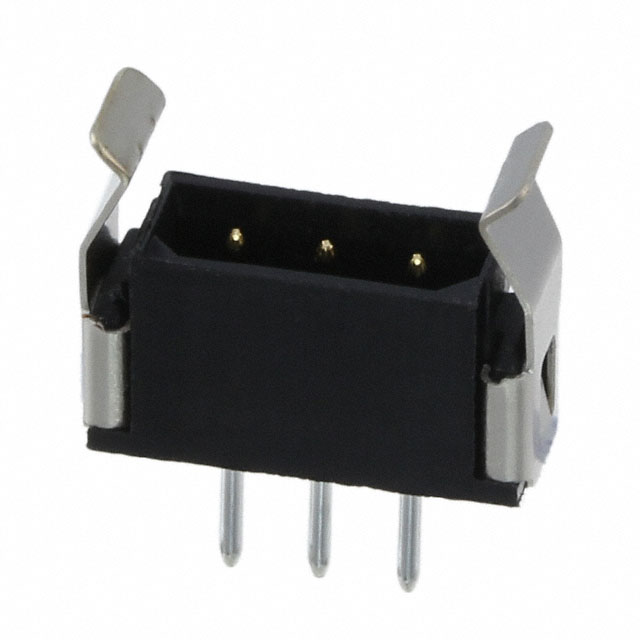

Connector Header Through Hole 3 position 0.079" (2.00mm)
Quick Inquiry
M80-8220322
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Male Pins |
| Manufacturer | Harwin Inc. |
| Series | Datamate L-Tek |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Plug |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Latch Lock |
| Contact Length - Mating | - |
| Contact Length - Post | 0.215" (5.46mm) |
| Overall Contact Length | - |
| Insulation Height | 0.219" (5.56mm) |
| Contact Shape | Circular |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 29.5µin (0.75µm) |
| Contact Finish - Post | Tin-Lead |
| Contact Material | Phosphor Bronze |
| Insulation Material | Polyester, Glass Filled |
| Features | - |
| Operating Temperature | -55°C ~ 125°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2.2A |
| Voltage Rating | 120V |
| Mated Stacking Heights | 7.23mm, 7.85mm, 10.2mm, 13.51mm |
| Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Applications | - |
| Base Product Number | - |
