Product CatalogPart Number
M80-8871405
Manufacturer
Harwin Inc.Description
CONN RCPT 14POS 0.079 GOLD PCB
Datasheet
DatasheetPackage
-
In Stock
99,804 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
M80-8871405
M80-8871405
lmages are for reference only.Payment Methods
Delivery Services
14 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Quick Inquiry
M80-8871405
Specifications
| Category | Connectors, Interconnects - Rectangular Connectors - Headers-Receptacles-Female Sockets |
| Manufacturer | Harwin Inc. |
| Series | Datamate L-Tek |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Style | Board to Board or Cable |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Locking Ramp |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 12.0µin (0.30µm) |
| Insulation Color | Black |
| Insulation Height | 0.202" (5.14mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | -55°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | 7.23mm, 7.85mm |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | - |
| Voltage Rating | 800V |
| Applications | Automotive, General Purpose, Military |
| Insulation Material | Polyester, Glass Filled |
| Contact Shape | Circular |
| Contact Material | Beryllium Copper |
| Contact Finish Thickness - Post | 10.0µin (0.25µm) |
| Base Product Number | M80-887 |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |

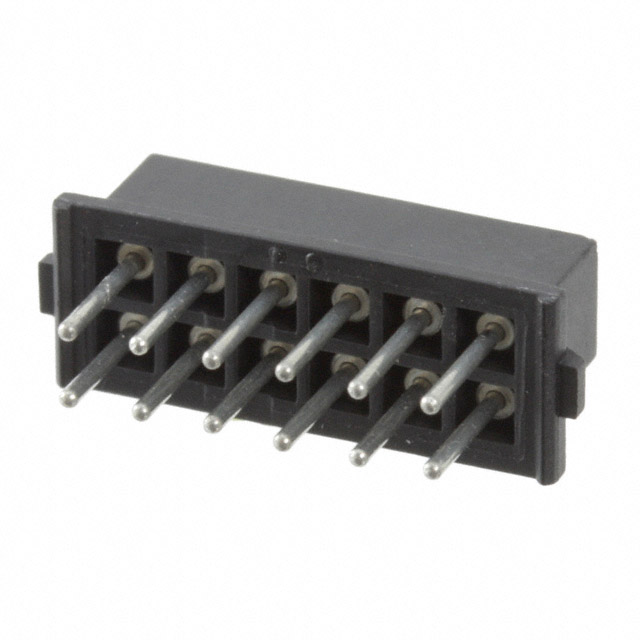

| Part Number | M80-8871405 | M80-8871001 | M80-8871005 | M80-8871201 |
| Manufacturer | Harwin Inc. | Harwin Inc. | Harwin Inc. | Harwin Inc. |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | CONN RCPT 14POS 0.079 GOLD PCB | CONN RCPT 10POS 0.079 GOLD PCB | CONN RCPT 10POS 0.079 GOLD PCB | CONN RCPT 12POS 0.079 GOLD PCB |
| Series | Harwin Inc. | Harwin Inc. | Harwin Inc. | Harwin Inc. |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
M80-8400242
Harwin Inc.
M80-8400245
Harwin Inc.
M80-8400342
Harwin Inc.
M80-8400345
Harwin Inc.
M80-8400442
Harwin Inc.
M80-8400445
Harwin Inc.
M80-8400542
Harwin Inc.

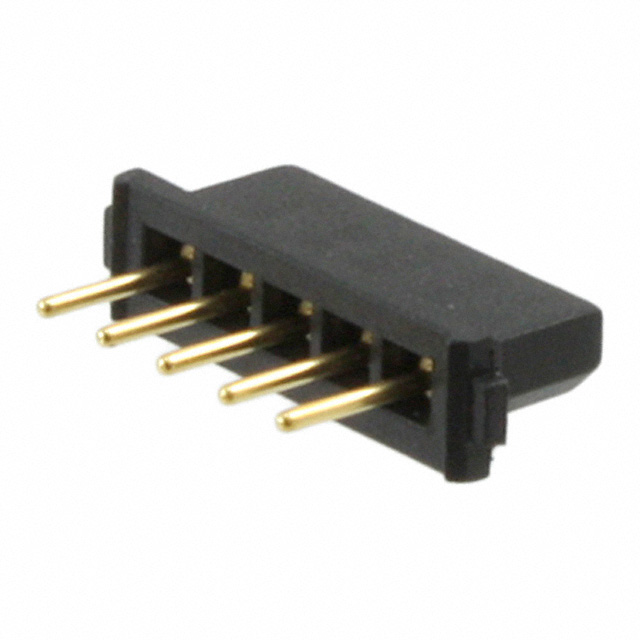

M80-8400545
