MA4E1338A1-1141T
lmages are for reference only.MA4E1338A1-1141T
SCHOTTKY PLASTIC LEAD-FREE
DatasheetSC-76, SOD-323
92,258 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Diode Schottky - Single 8V 30 mA 250 mW SOD-323
MA4E1338A1-1141T
| Category | Discrete Semiconductor Products - Diodes - RF Diodes |
| Manufacturer | MACOM Technology Solutions |
| Series | MA4E1338 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Base Product Number | MA4E1338 |
| Diode Type | Schottky - Single |
| Voltage - Peak Reverse (Max) | 8V |
| Current - Max | 30 mA |
| Capacitance @ Vr, F | 1pF @ 0V, 1MHz |
| Resistance @ If, F | - |
| Power Dissipation (Max) | 250 mW |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

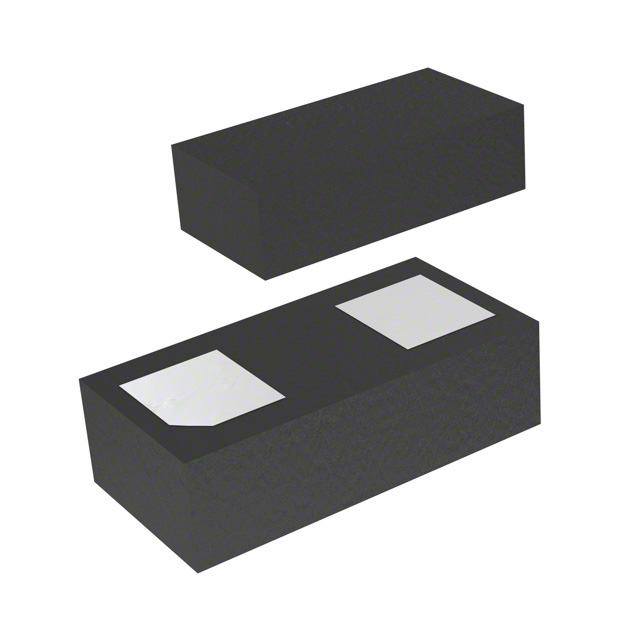

| Part Number | MA4E1338A1-1146T | MA4E1338A1-287T | MA4E1310 | MA4E1317 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ROHS3 Compliant | Not applicable | ROHS3 Compliant | |

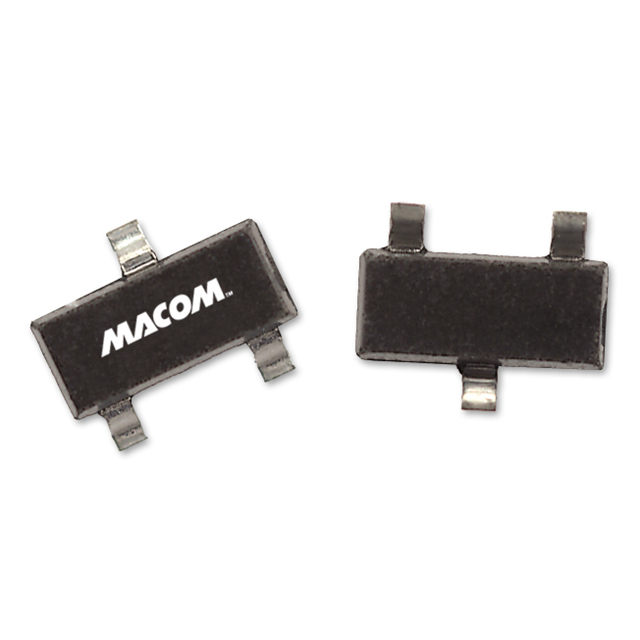

| Description | SCHOTTKY PLASTIC LEAD-FREE | 8V BARRIER DIODE SOT 23 | GAAS_FLIP_CHIP | RF DIODE SCHOTTKY 7V |
| Series | MA4E1338 | MA4E1338 | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Bulk |
