Product CatalogPart Number
MA4E2514L-1116
Manufacturer
MACOM Technology SolutionsDescription
HMIC SURMOUNT SCHOTTKY TEE
Datasheet
DatasheetPackage
Die
In Stock
61,004 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MA4E2514L-1116
MA4E2514L-1116
lmages are for reference only.Payment Methods
Delivery Services
RF Diode Schottky 5V 20 mA 50 mW Die
Quick Inquiry
MA4E2514L-1116
Specifications
| Category | Discrete Semiconductor Products - Diodes - RF Diodes |
| Manufacturer | MACOM Technology Solutions |
| Series | MA4E2514 Surmount™ |
| Packaging | Tray |
| RoHS Status | |
| Base Product Number | MA4E2514 |
| Diode Type | Schottky |
| Voltage - Peak Reverse (Max) | 5V |
| Current - Max | 20 mA |
| Capacitance @ Vr, F | 0.12pF @ 0V, 1MHz |
| Resistance @ If, F | - |
| Power Dissipation (Max) | 50 mW |
| Operating Temperature | -40°C ~ 150°C |
| Package / Case | Die |
| Supplier Device Package | Die |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

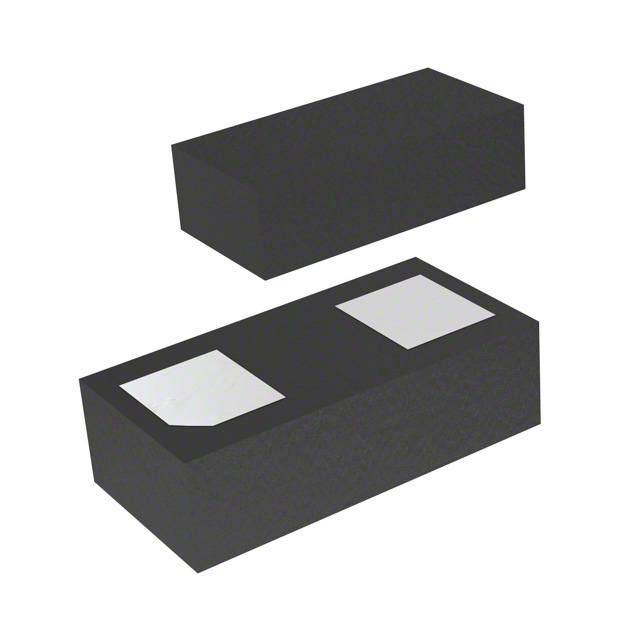

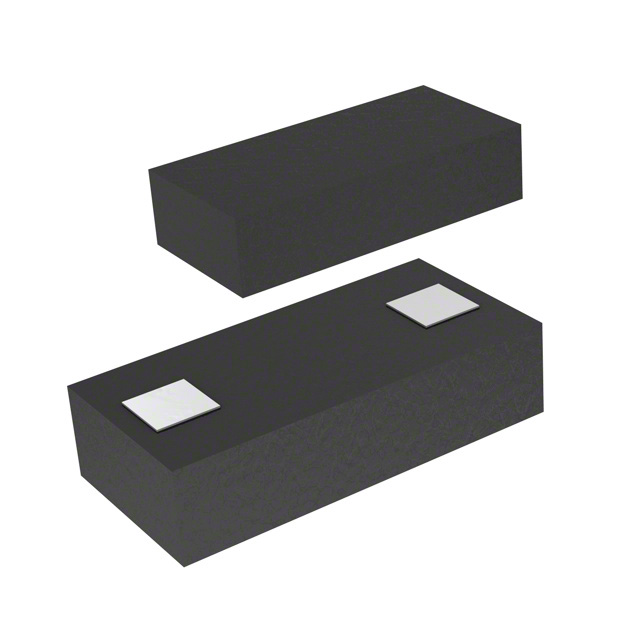

| Part Number | MA4E2514M-1116 | MA4E1310 | MA4E1317 | MA4E1318 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | Not applicable | ROHS3 Compliant | ROHS3 Compliant | |
| Description | HMIC SURMOUNT SCHOTTKY TEE MEDIU | GAAS_FLIP_CHIP | RF DIODE SCHOTTKY 7V | RF DIODE SCHOTTKY 7V |
| Series | MA4E2514 Surmount™ | - | - | - |
| Packaging | Tray | Bulk | Bulk | Bulk |
