MA4PK3000-1252

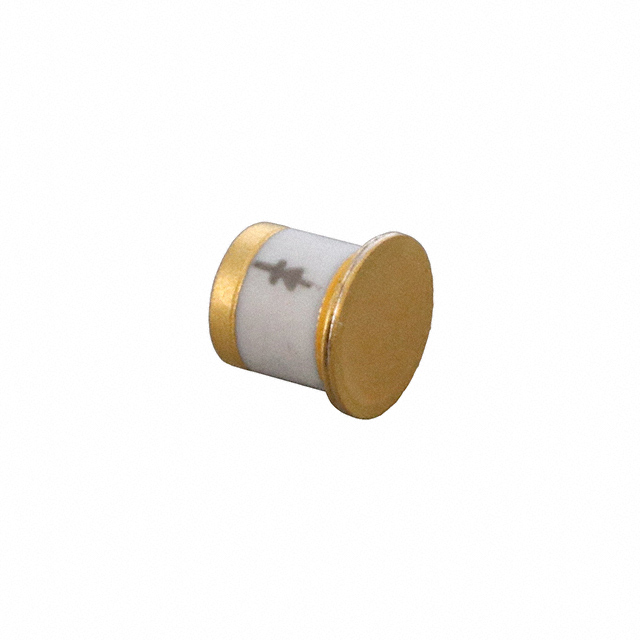

lmages are for reference only.MA4PK3000-1252
DIODE,PIN,CHIP,CERAMIC,SI,ODS-12
DatasheetDie
40,866 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Diode PIN - Single 3000V 17 A 75 W Chip
MA4PK3000-1252
| Category | Discrete Semiconductor Products - Diodes - RF Diodes |
| Manufacturer | MACOM Technology Solutions |
| Series | KILOVOLT™ |
| Packaging | Tray |
| RoHS Status | Not applicable |
| Base Product Number | MA4PK |
| Diode Type | PIN - Single |
| Voltage - Peak Reverse (Max) | 3000V |
| Current - Max | 17 A |
| Capacitance @ Vr, F | 2.5pF @ 100V, 1MHz |
| Resistance @ If, F | 250mOhm @ 500mA, 4MHz |
| Power Dissipation (Max) | 75 W |
| Operating Temperature | -65°C ~ 175°C |
| Package / Case | Die |
| Supplier Device Package | Chip |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
|
| Part Number | MA4PK3000 | MA4PK3001 | MA4PK3002 | MA4PK3003 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ||||
| Description | DIODE,PIN,BONDED,STRIPLINE,SI | DIODE,PIN,BONDED,SI,ODS1084 | DIODE,PIN,BONDED,STRIPLINE,SI,OD | DIODE,PIN,BONDED,STRIPLINE,SI |
| Series | KILOVOLT™ | KILOVOLT™ | KILOVOLT™ | KILOVOLT™ |
| Packaging | Bulk | Bulk | Bulk | Bulk |
