MAAD-000523-TR1000
lmages are for reference only.MAAD-000523-TR1000
ATTENUATOR,SERIES PARALLEL 6BT,4
Datasheet24-VFQFN Exposed Pad
46,072 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Attenuators 0.5dB ~ 31.5dB 700 MHz ~ 6 GHz 50 Ohms 24-VFQFN Exposed Pad
MAAD-000523-TR1000
| Category | RF and Wireless - Attenuators - |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Attenuation Value | 0.5dB ~ 31.5dB |
| Frequency Range | 700 MHz ~ 6 GHz |
| Power (Watts) | - |
| Impedance | 50 Ohms |
| Package / Case | 24-VFQFN Exposed Pad |
| Base Product Number | MAAD-000523 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

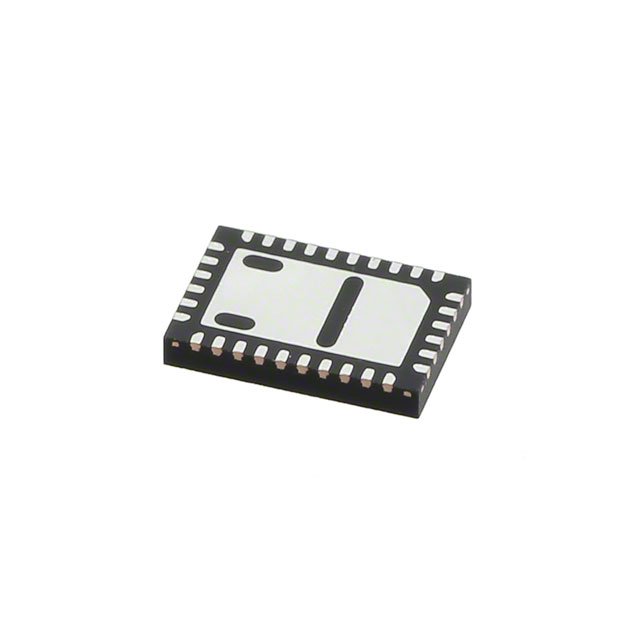

| Part Number | MAAD-007077-000100 | MAAD-007078-000100 | MAAD-007079-000100 | MAAD-007080-000100 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ||||
| Description | DIGITAL ATTENUATOR,15 DB,4-BIT,T | DIGITAL ATTENUATOR,31 DB,5-BIT,T | DIGITAL ATTENUATOR,30 DB,4-BIT,T | DIGITAL ATTENUATOR,50 DB,6-BIT,T |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
