MAAL-011188-TR1000
lmages are for reference only.MAAL-011188-TR1000
AMPLIFIER,1-6 GHZ, 3MM-16LD QFN
Datasheet16-VFQFN Exposed Pad
64,442 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC 5G, FDD, TDD 1GHz ~ 6GHz 16-QFN (3x3)
MAAL-011188-TR1000
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Frequency | 1GHz ~ 6GHz |
| P1dB | -17.4dBm |
| Gain | 35.2dB |
| Noise Figure | 0.92dB |
| RF Type | 5G, FDD, TDD |
| Voltage - Supply | 4.75V ~ 5.25V |
| Current - Supply | 80mA |
| Test Frequency | 2.5GHz |
| Mounting Type | Surface Mount |
| Package / Case | 16-VFQFN Exposed Pad |
| Supplier Device Package | 16-QFN (3x3) |
| Base Product Number | MAAL-011188 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

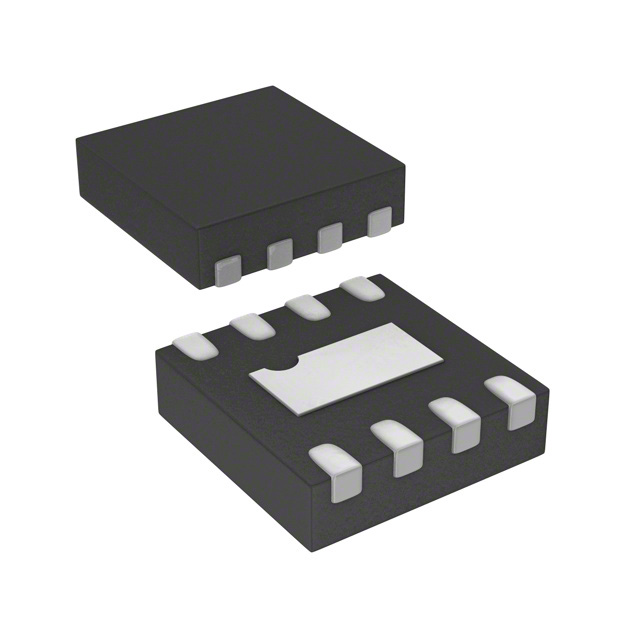

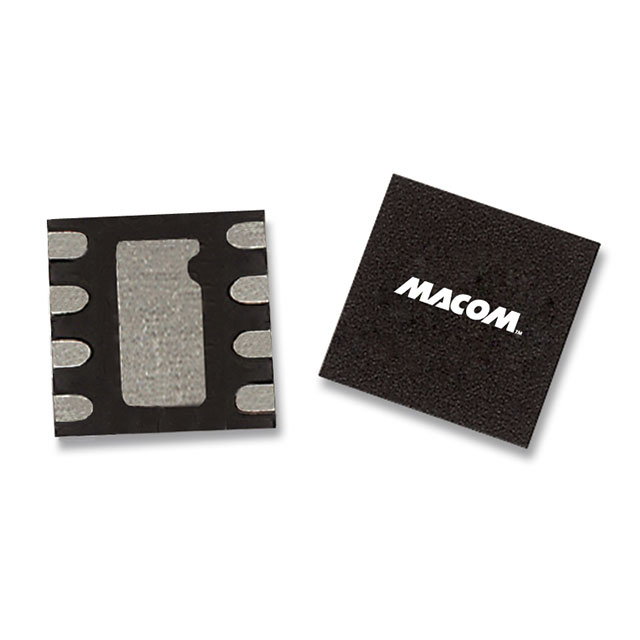

| Part Number | MAAL-011078-001SMB | MAAL-011078-TR1000 | MAAL-011129-TR1000 | MAAL-011129-TR3000 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC RF AMP GPS 700MHZ-6GHZ 8DFN | IC RF AMP 700MHZ-6GHZ 8DFN | IC RF AMP ISM 18GHZ-31.5GHZ 8DFN | AMPLIFIER,LNA,18-31.5 GHZ,2MM,3K |
| Series | - | - | - | - |
| Packaging | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
