MAAM-011100-TR1000
lmages are for reference only.MAAM-011100-TR1000
IC RF AMP GPS 400MHZ-20GHZ 6TDFN
Datasheet6-WFDFN Exposed Pad
28,712 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC General Purpose 400MHz ~ 20GHz 6-TDFN (1.5x1.2)
MAAM-011100-TR1000
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Frequency | 400MHz ~ 20GHz |
| P1dB | 15dBm |
| Gain | 12dB |
| Noise Figure | 5dB |
| RF Type | General Purpose |
| Voltage - Supply | 5V |
| Current - Supply | 70mA |
| Test Frequency | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-WFDFN Exposed Pad |
| Supplier Device Package | 6-TDFN (1.5x1.2) |
| Base Product Number | MAAM-011100 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

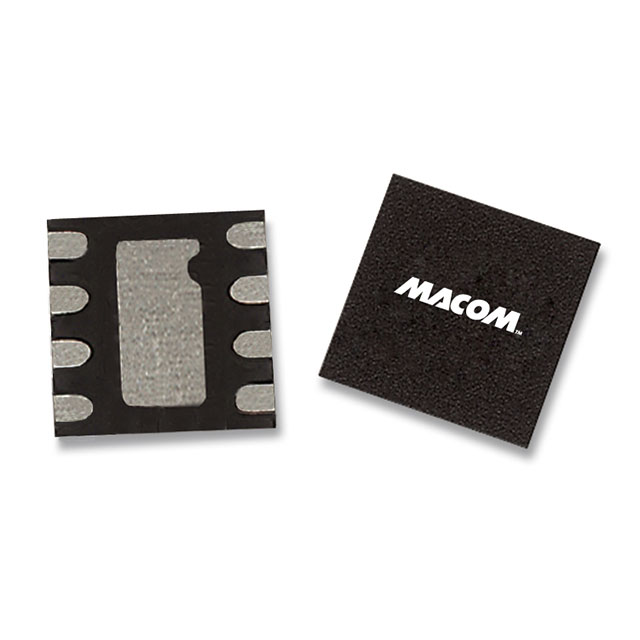

| Part Number | MAAM-011101-TR1000 | MAAM-011109-DIE | MAAM-011112-TR0500 | MAAM-011117-TR3000 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | IC RF AMP GPS 4GHZ-20GHZ 6TDFN | AMPLIFIER,ULTRA WIDE-BAND DC-40 | DRIVER,20 TO 40GHZ,3X3QFN,T&R500 | IC RF AMP GPS 50MHZ-2.7GHZ 8DFN |
| Series | - | - | MAAM-011112 | MAAM-011117 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Bulk | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
