Product CatalogPart Number
MAF150US12B
Manufacturer
P-DUKE TechnologyDescription
AC/DC CONVERTER 12V 100W
Datasheet
DatasheetPackage
-
In Stock
72,329 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MAF150US12B
MAF150US12B
lmages are for reference only.Payment Methods
Delivery Services
Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC, 120 ~ 370 VDC Input
Quick Inquiry
MAF150US12B
Specifications
| Category | Power Supplies - External/Internal (Off-Board) - AC DC Converters - |
| Manufacturer | P-DUKE Technology |
| Series | MAF150 (150W) |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 85 ~ 264 VAC, 120 ~ 370 VDC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 8.34 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Applications | ITE (Commercial), Medical |
| Voltage - Isolation | 4 kV |
| Efficiency | 91% |
| Operating Temperature | -25°C ~ 85°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.00" W x 1.16" H (101.6mm x 50.8mm x 29.5mm) |
| Approval Agency | CB, CE, cURus, FCC |
| Minimum Load Required | No |
| Voltage - Output 5 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Power (Watts) | 100W (150W Forced Air) |
| Features | Adjustable Output, Universal Input |
| Standard Number | 60601-1; 60950-1 |
| Base Product Number | MAF150 |
| Current - Output 6 | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
|
 |

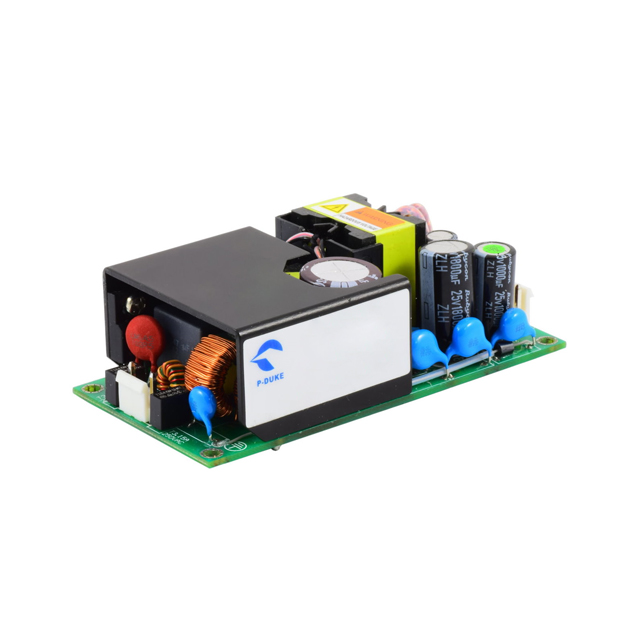

| Part Number | MAF150US24B | MMC75A-2 | MS-210-1F | MFLS250-2348 |
| Manufacturer | P-DUKE Technology | Cosel USA, Inc. | MEAN WELL USA Inc. | Bel Power Solutions |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | AC/DC CONVERTER 24V 110W | AC/DC CONVERTER 5V +/-12V | POWER SUPPLY MODULAR | AC/DC CONVERTER 48V 250W |
| Series | MAF150 (150W) | MMC (75W) | * | MFLS250 (250W) |
| Packaging | Box | Box | Bulk | Box |
