MAFL-011024
lmages are for reference only.MAFL-011024
RF DIPLEXER 45MHZ/555MHZ 11SMD
Datasheet11-SMD Module
58,784 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Diplexer 5MHz ~ 85MHz / 108MHz ~ 1.002GHz 11-SMD Module
MAFL-011024
| Category | RF and Wireless - RF Multiplexers - |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Diplexer |
| Frequency Bands (Low / High) | 5MHz ~ 85MHz / 108MHz ~ 1.002GHz |
| Low Band Attenuation (min / max dB) | - |
| High Band Attenuation (min / max dB) | - |
| Return Loss (Low Band / High Band) | 16.0dB / 16.0dB |
| Mounting Type | Surface Mount |
| Package / Case | 11-SMD Module |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute | |  | |  |

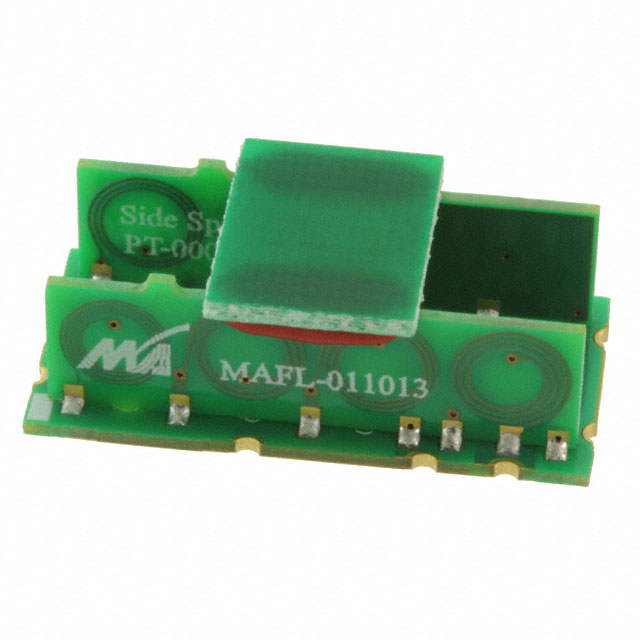

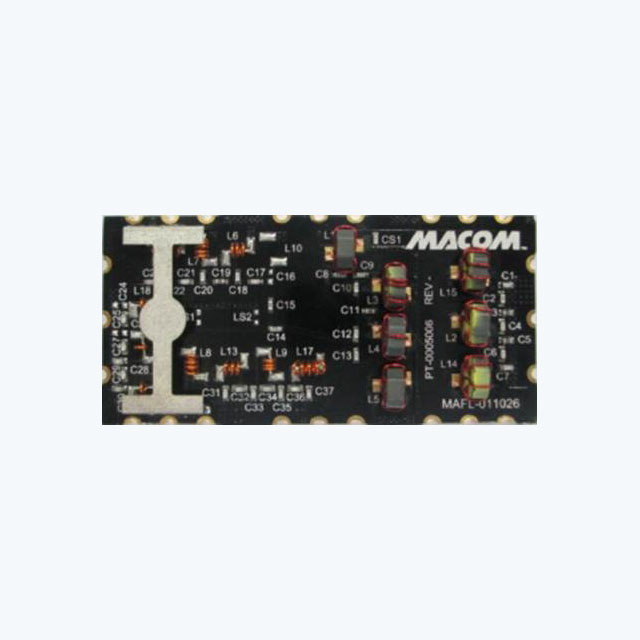

| Part Number | MAFL-011024 | MAFL-011026 | MAFL-011026 | MAFL-011013 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RF DIPLEXER 45MHZ/555MHZ 11SMD | RF DIPLEXER 502.5MHZ/1.4GHZ MOD | RF DIPLEXER 502.5MHZ/1.4GHZ MOD | RF DIPLEXER 23.5MHZ/527MHZ 11SMD |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
