MAL205017223E3

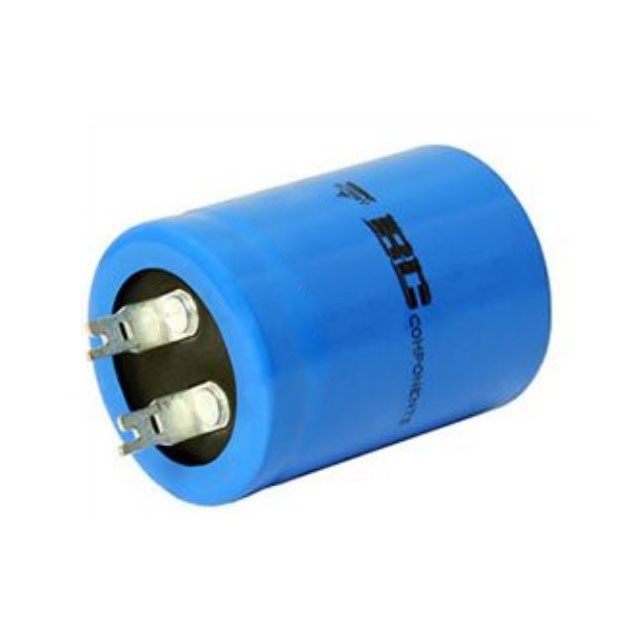

lmages are for reference only.MAL205017223E3
CAP ALUM 22000UF 40V SOLDER LUG
DatasheetRadial, Can - Solder Lug
93,635 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
22000 µF 40 V Aluminum Electrolytic Capacitors Radial, Can - Solder Lug 18mOhm @ 100Hz 15000 Hrs @ 85°C
MAL205017223E3
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | 050 PED-PW |
| Packaging | Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 22000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 18mOhm @ 100Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.575" Dia (40.00mm) |
| Height - Seated (Max) | 4.016" (102.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Solder Lug |
| Base Product Number | - |
| Impedance | 16 mOhms |
| Product Attribute |  |
 |
|
|
| Part Number | MAL205017222E3 | MAL205014103E3 | MAL205014153E3 | MAL205014223E3 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 2200UF 40V SOLDER LUG | CAP ALUM 10000UF 10V SOLDER LUG | CAP ALUM 15000UF 10V SOLDER LUG | CAP ALUM 22000UF 10V SOLDER LUG |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) | Tape & Box (TB) |
