MAL210116683E3

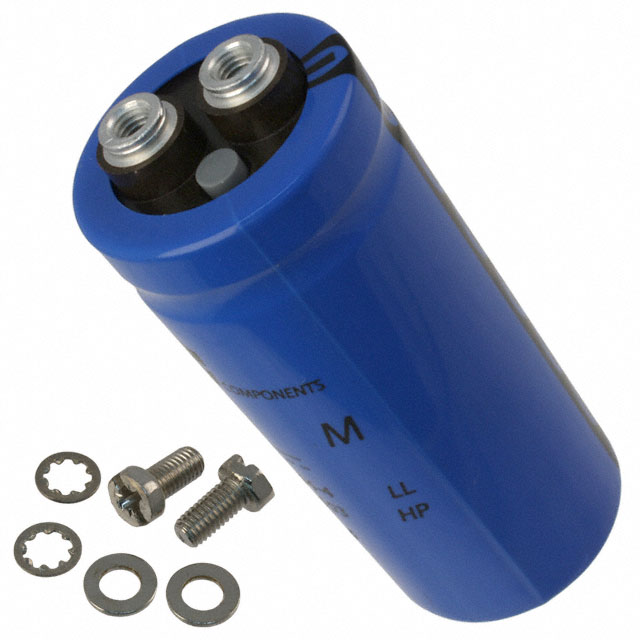

lmages are for reference only.MAL210116683E3
CAP ALUM 68000UF 20% 25V SCREW
DatasheetRadial, Can - Screw Terminals
98,718 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
68000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 15mOhm @ 100Hz 10000 Hrs @ 85°C
MAL210116683E3
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | 101 PHR-ST |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 68000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 15mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12.8 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Height - Seated (Max) | 3.496" (88.80mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Base Product Number | - |
| Impedance | 13 mOhms |
| Product Attribute |  |
|
 |
 |
| Part Number | MAL210116684E3 | MAL210116104E3 | MAL210116153E3 | MAL210116154E3 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM 680000UF 20% 25V SCREW | CAP ALUM 100000UF 20% 25V SCREW | CAP ALUM 15000UF 20% 25V SCREW | CAP ALUM 150000UF 20% 25V SCREW |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Bulk | Bulk | Bulk | Bulk |
