MAOC-009871-000000

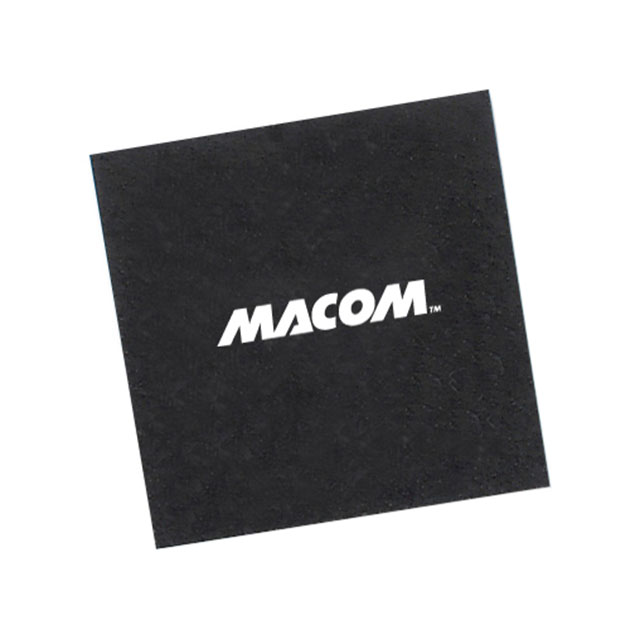

lmages are for reference only.MAOC-009871-000000
OSCILLATOR,9.2-10.2 GHZ, 5MMPQFN
Datasheet32-VFQFN Exposed Pad
41,072 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
9.7GHz Center Frequency 2 V ~ 13 V Voltage Controlled Oscillator 7 dBm -34 2nd Harmonic Typ (dBc)
MAOC-009871-000000
| Category | Crystals, Oscillators, Resonators - VCOs Voltage Controlled Oscillators - |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Frequency Range | 9.2 ~ 10.2GHz |
| Frequency - Center | 9.7GHz |
| Voltage - Supply | 5V |
| Tuning Voltage (VDC) | 2 V ~ 13 V |
| 2nd Harmonic, Typ (dBc) | -34 |
| Icc Max | 175mA |
| Pushing (MHz/V) | 20 |
| Power (dBm) | 7 |
| Phase Noise Typ (dBc/Hz) | -86 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 32-VFQFN Exposed Pad |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | MAOC-009871-000000 | MAOC-009871-000000 | MAOC-009871-TR0500 | MAOC-009871-TR0500 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ||||
| Description | OSCILLATOR,9.2-10.2 GHZ, 5MMPQFN | OSCILLATOR,9.2-10.2 GHZ, 5MMPQFN | OSCILLATOR,9.2-10.2 GHZ, 5MMPQFN | OSCILLATOR,9.2-10.2 GHZ, 5MMPQFN |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Tape & Reel (TR) |
