MAOC-011031-TR0500

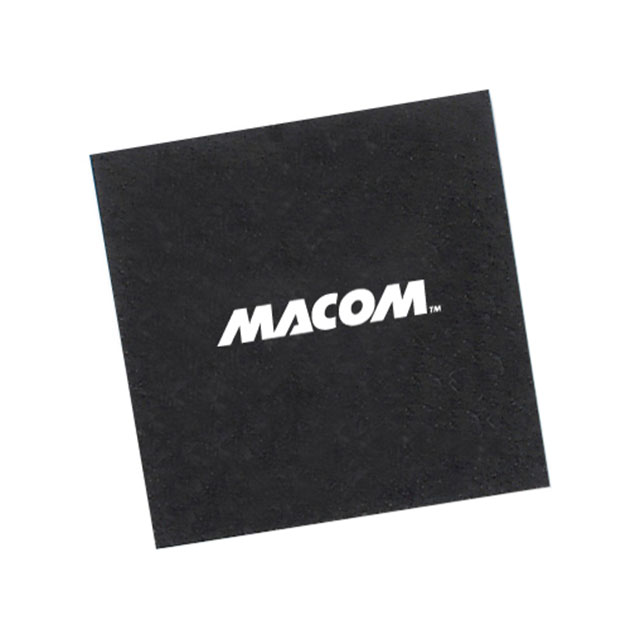

lmages are for reference only.MAOC-011031-TR0500
OSCILLATOR,VC,6.751-7.519 GHZ,5M
Datasheet32-VFQFN Exposed Pad
36,036 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
7.135GHz Center Frequency 1 V ~ 12.5 V Voltage Controlled Oscillator 12 dBm -17 2nd Harmonic Typ (dBc)
MAOC-011031-TR0500
| Category | Crystals, Oscillators, Resonators - VCOs Voltage Controlled Oscillators - |
| Manufacturer | MACOM Technology Solutions |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Frequency Range | 6.751 ~ 7.519GHz |
| Frequency - Center | 7.135GHz |
| Voltage - Supply | 5V |
| Tuning Voltage (VDC) | 1 V ~ 12.5 V |
| 2nd Harmonic, Typ (dBc) | -17 |
| Icc Max | 175mA |
| Pushing (MHz/V) | 2 |
| Power (dBm) | 12 |
| Phase Noise Typ (dBc/Hz) | -93 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 32-VFQFN Exposed Pad |
| Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) |
| Height | 0.039" (1.00mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|
| Part Number | MAOC-011031-TR0500 | MAOC-011031-TR0500 | MAOC-011026-TR0500 | MAOC-011026-TR0500 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| RoHS Status | ||||
| Description | OSCILLATOR,VC,6.751-7.519 GHZ,5M | OSCILLATOR,VC,6.751-7.519 GHZ,5M | OSCILLATOR,VC,12.5-13.7 GHZ,5MMP | OSCILLATOR,VC,12.5-13.7 GHZ,5MMP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
