MAPLAD15KP100AE3

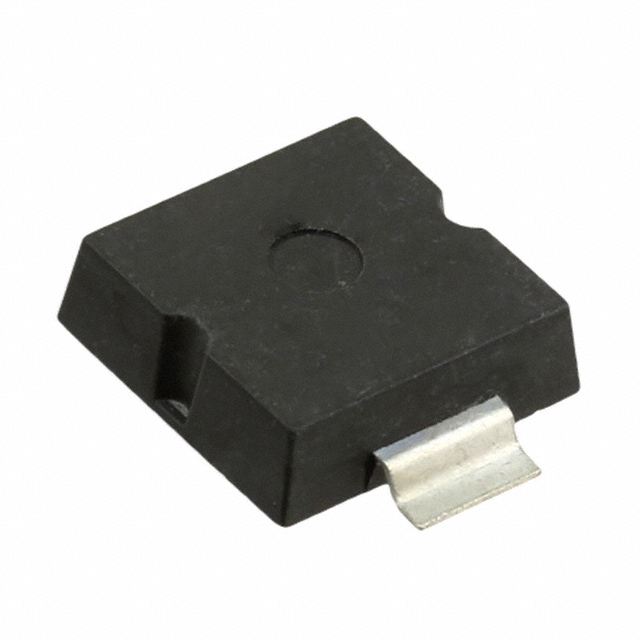

lmages are for reference only.MAPLAD15KP100AE3
TVS DIODE 100VWM 162VC PLAD
DatasheetNonstandard SMD
30,751 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
162V Clamp 93A Ipp Tvs Diode Surface Mount PLAD
MAPLAD15KP100AE3
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 100V |
| Voltage - Breakdown (Min) | 111V |
| Voltage - Clamping (Max) @ Ipp | 162V |
| Current - Peak Pulse (10/1000µs) | 93A |
| Power - Peak Pulse | 15000W (15kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard SMD |
| Supplier Device Package | PLAD |
| Base Product Number | PLAD15 |
| Unidirectional Channels | 1 |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
| Product Attribute |  |
 |
 |
 |
| Part Number | MAPLAD15KP100A | MAPLAD15KP100CA | MAPLAD15KP100CAE3 | MAPLAD15KP10A |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | TVS DIODE 100VWM 162VC PLAD | TVS DIODE 100VWM 162VC PLAD | TVS DIODE 100VWM 162VC PLAD | TVS DIODE 10VWM 17VC PLAD |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Bulk | Bulk | Bulk | Bulk |
