MASMBG30CA

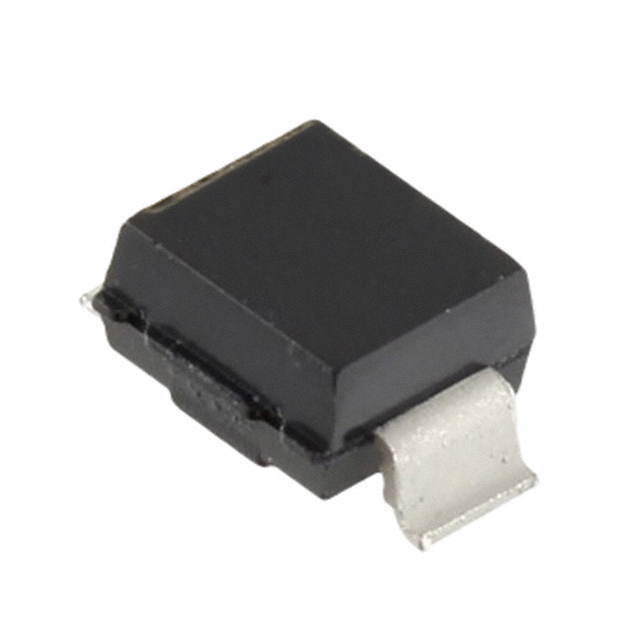

lmages are for reference only.MASMBG30CA
TVS DIODE 30VWM 48.4VC SMBG
DatasheetDO-215AA, SMB Gull Wing
85,835 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
48.4V Clamp 12.4A Ipp Tvs Diode Surface Mount DO-214AA (SMBG)
MASMBG30CA
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 30V |
| Voltage - Breakdown (Min) | 33.3V |
| Voltage - Clamping (Max) @ Ipp | 48.4V |
| Current - Peak Pulse (10/1000µs) | 12.4A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-215AA, SMB Gull Wing |
| Supplier Device Package | DO-214AA (SMBG) |
| Base Product Number | SMBG30 |
| Unidirectional Channels | - |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
| Product Attribute |  |
 |
|
 |
| Part Number | MASMBG30CAE3 | MASMBG30A | MASMBG30AE3 | MASMBG33A |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | TVS DIODE 30VWM 48.4VC SMBG | TVS DIODE 30VWM 48.4VC SMBG | TVS DIODE 30VWM 48.4VC SMBG | TVS DIODE 33VWM 53.3VC SMBG |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Bulk | Bulk | Bulk | Bulk |
