MASMBG36CAE3

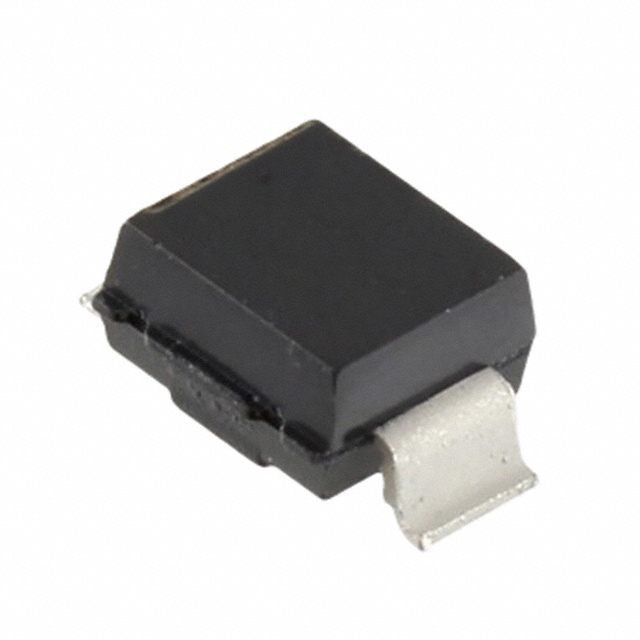

lmages are for reference only.MASMBG36CAE3
TVS DIODE 36VWM 58.1VC SMBG
DatasheetDO-215AA, SMB Gull Wing
18,468 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
58.1V Clamp 10.3A Ipp Tvs Diode Surface Mount DO-214AA (SMBG)
MASMBG36CAE3
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 36V |
| Voltage - Breakdown (Min) | 40V |
| Voltage - Clamping (Max) @ Ipp | 58.1V |
| Current - Peak Pulse (10/1000µs) | 10.3A |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | DO-215AA, SMB Gull Wing |
| Supplier Device Package | DO-214AA (SMBG) |
| Base Product Number | SMBG36 |
| Unidirectional Channels | - |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
| Product Attribute |  |
 |
 |
 |
| Part Number | MASMBG36CA | MASMBG100A | MASMBG100AE3 | MASMBG100CA |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | TVS DIODE 36VWM 58.1VC SMBG | TVS DIODE 100VWM 162VC SMBG | TVS DIODE 100VWM 162VC SMBG | TVS DIODE 100VWM 162VC SMBG |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Bulk | Bulk | Bulk | Bulk |
