MAX14932AASE+T

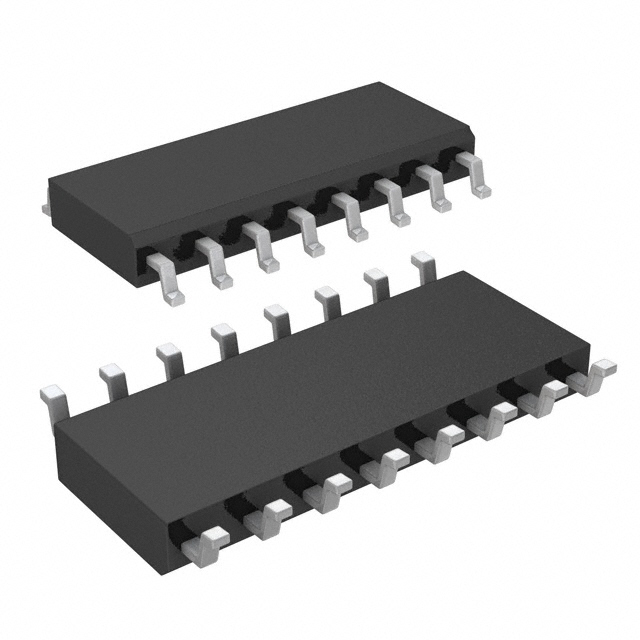

lmages are for reference only.MAX14932AASE+T
DGTL ISO 2750VRMS 4CH GP 16SOIC
Datasheet16-SOIC (0.154", 3.90mm Width)
11,653 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Digital Isolator 2750Vrms 4 Channel 1Mbps 25kV/µs (Typ) CMTI 16-SOIC (0.154", 3.90mm Width)
MAX14932AASE+T
| Category | Isolators - Digital Isolators - |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 2/2 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 2750Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs (Typ) |
| Data Rate | 1Mbps |
| Propagation Delay tpLH / tpHL (Max) | 54.1ns, 55.3ns |
| Pulse Width Distortion (Max) | 4.5ns |
| Rise / Fall Time (Typ) | 2ns, 2ns |
| Voltage - Supply | 1.71V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | MAX14932 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MAX14932AASE+ | MAX14932AAWE+ | MAX14932AAWE+T | MAX14932BASE+ |
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DGTL ISO 2750VRMS 4CH GP 16SOIC | DGTL ISO 2750VRMS 4CH GP 16SOIC | DGTL ISO 2750VRMS 4CH GP 16SOIC | DGTL ISO 2750VRMS 4CH GP 16SOIC |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
