MAX16804ATP+

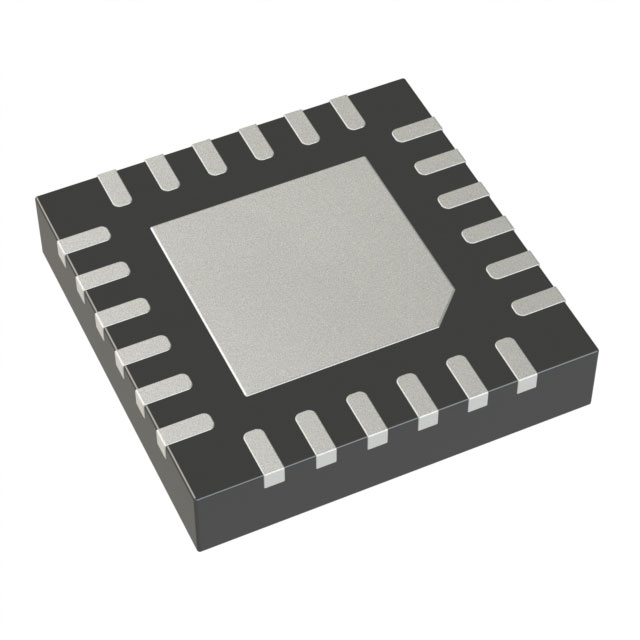

lmages are for reference only.MAX16804ATP+
IC LED DRVR LIN PWM 350MA 20TQFN
Datasheet20-WQFN Exposed Pad
54,351 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 1 Output Linear Analog, PWM Dimming 350mA 20-TQFN (5x5)
MAX16804ATP+
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Linear |
| Topology | - |
| Internal Switch(s) | Yes |
| Number of Outputs | 1 |
| Voltage - Supply (Min) | 5.5V |
| Voltage - Supply (Max) | 40V |
| Voltage - Output | 39.5V |
| Current - Output / Channel | 350mA |
| Frequency | - |
| Dimming | Analog, PWM |
| Applications | Signage |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WQFN Exposed Pad |
| Supplier Device Package | 20-TQFN (5x5) |
| Base Product Number | MAX16804 |
| Grade | Automotive |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MAX16804ATP+T | MAX16800ATE+ | MAX16800ATE+T | MAX16800ATE/V+ |
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC LED DRVR LIN PWM 350MA 20TQFN | IC LED DRVR LIN PWM 350MA 16TQFN | IC LED DRVR LIN PWM 350MA 16TQFN | IC LED DRVR LIN PWM 350MA 16TQFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Tube |
