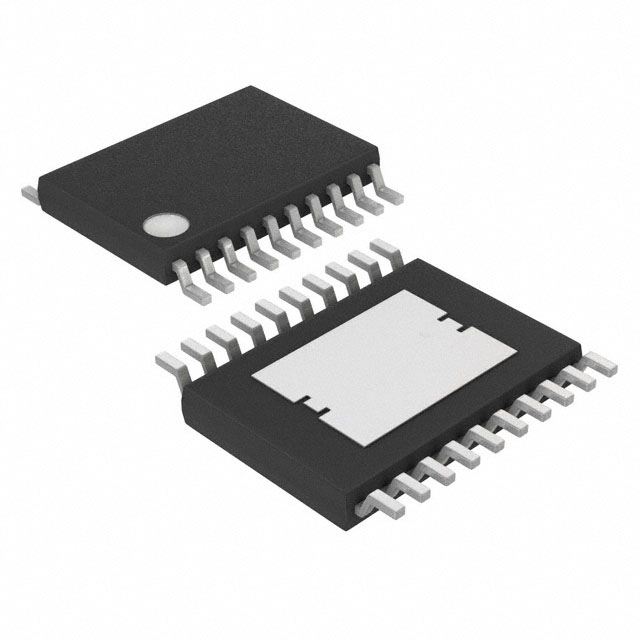

MAX16814AUP+
lmages are for reference only.MAX16814AUP+
IC LED DRVR CTRLR PWM 20TSSOP
Datasheet20-TSSOP (0.173", 4.40mm Width) Exposed Pad
19,811 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 4 Output DC DC Controller SEPIC, Step-Down (Buck), Step-Up (Boost) PWM Dimming 150mA 20-TSSOP-EP
MAX16814AUP+
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | DC DC Controller |
| Topology | SEPIC, Step-Down (Buck), Step-Up (Boost) |
| Internal Switch(s) | No |
| Number of Outputs | 4 |
| Voltage - Supply (Min) | 4.75V |
| Voltage - Supply (Max) | 40V |
| Voltage - Output | - |
| Current - Output / Channel | 150mA |
| Frequency | 200kHz ~ 2MHz |
| Dimming | PWM |
| Applications | Backlight, Lighting |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 20-TSSOP-EP |
| Base Product Number | MAX16814 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MAX16814AUP+T | MAX16814AUP/V+ | MAX16814AUP/V+T | MAX16814AGP/VY+ |
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC LED DRVR CTRLR PWM 20TSSOP | IC LED DRVR CTRLR PWM 20TSSOP | IC LED DRVR CTRLR PWM 20TSSOP | IC LED DRV CTRL PWM 150MA 20QFND |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
