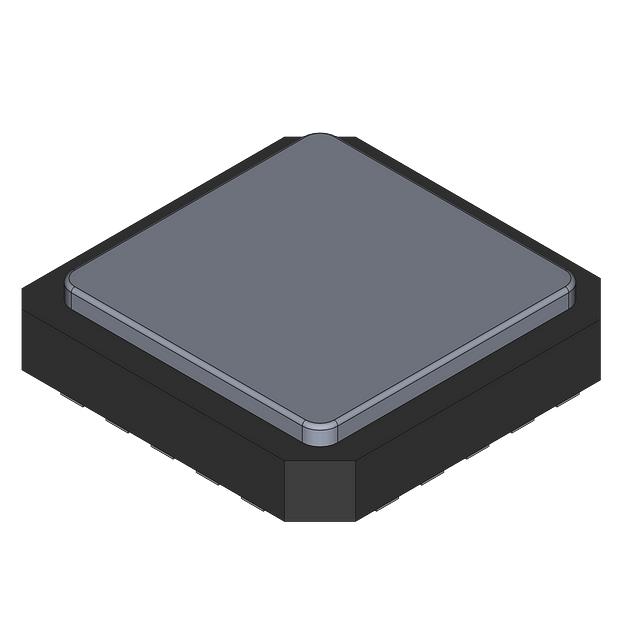

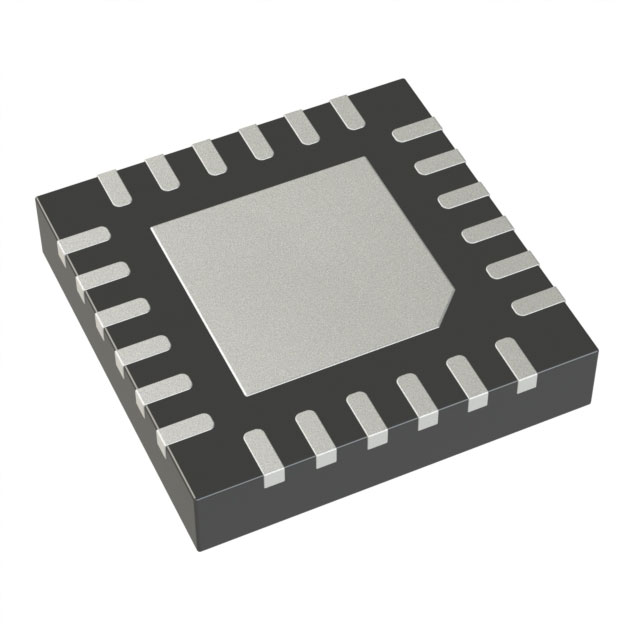

Buck Regulator Positive Output Step-Down DC-DC Controller IC 20-TQFN (5x5)
MAX1980ETP+TG075
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Frequency - Switching | 200kHz, 300kHz, 550kHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | Yes |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Current Limit, On Time Control, Pulse Skipping |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-WQFN Exposed Pad |
| Supplier Device Package | 20-TQFN (5x5) |
| Base Product Number | MAX1980 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MAX1980ETP | MAX1980ETP+ | MAX1980ETP-T | MAX1980EGP |
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant |
| Description | QUICK-PWM DC-DC CONVERTER | IC REG CTRLR BUCK 20-TQFN | QUICK-PWM DC-DC CONVERTER | QUICK-PWM DC-DC CONVERTER |
| Series | - | Quick-PWM™ | - | - |
| Packaging | Bulk | Tube | Bulk | Bulk |
