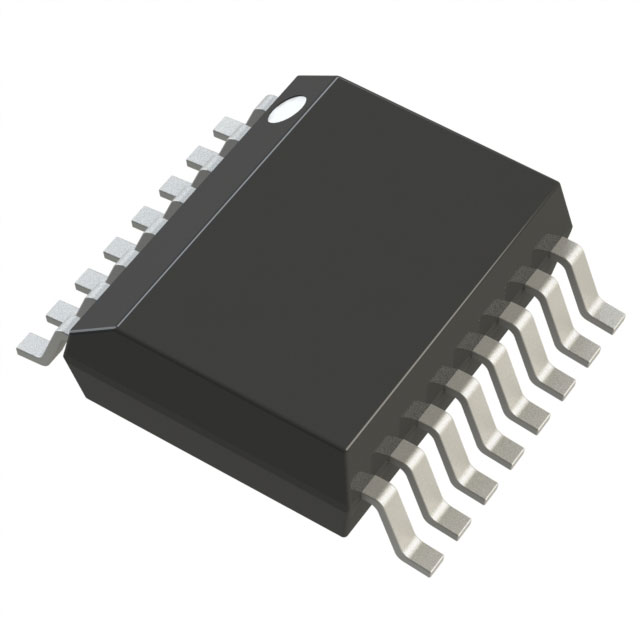

CAN, RS232, RS485, SPI Digital Isolator 3000Vrms 6 Channel 200Mbps 50kV/µs (Typ) CMTI 16-SSOP (0.154", 3.90mm Width)
MAX22166FAEE+
| Category | Isolators - Digital Isolators - |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Technology | Capacitive Coupling |
| Type | CAN, RS232, RS485, SPI |
| Isolated Power | No |
| Number of Channels | 6 |
| Inputs - Side 1/Side 2 | 6/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 3000Vrms |
| Common Mode Transient Immunity (Min) | 50kV/µs (Typ) |
| Data Rate | 200Mbps |
| Propagation Delay tpLH / tpHL (Max) | 9.5ns, 9.9ns |
| Pulse Width Distortion (Max) | 2ns |
| Rise / Fall Time (Typ) | 0.8ns, 1ns |
| Voltage - Supply | 1.71V ~ 5.5V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Supplier Device Package | 16-QSOP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MAX22166FAEE+T | MAX22163CAEE+ | MAX22163CAEE+T | MAX22163FAEE+ |
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| RoHS Status | ROHS3 Compliant | |||
| Description | MAX22166FAEE+T | MAX22163CAEE+ | MAX22163CAEE+T | 6 CHANNEL REINFORCED ISOLATOR |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR) | Tube |
