MAX25014ATG/V+
lmages are for reference only.MAX25014ATG/V+
IC LED DRV CTRL PWM 150MA 24TQFN
Datasheet24-WFQFN Exposed Pad
92,626 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
LED Driver IC 4 Output DC DC Controller Step-Up (Boost) PWM Dimming 150mA 24-TQFN (4x4)
MAX25014ATG/V+
| Category | Integrated Circuits (ICs) - Power Management PMIC - LED Drivers |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | DC DC Controller |
| Topology | Step-Up (Boost) |
| Internal Switch(s) | Yes |
| Number of Outputs | 4 |
| Voltage - Supply (Min) | 2.5V |
| Voltage - Supply (Max) | 36V |
| Voltage - Output | 5V |
| Current - Output / Channel | 150mA |
| Frequency | 400kHz ~ 2.2MHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-WFQFN Exposed Pad |
| Supplier Device Package | 24-TQFN (4x4) |
| Base Product Number | MAX25014 |
| Grade | Automotive |
| Qualification | AEC-Q100 |
| Product Attribute |  |
 |
 |
 |

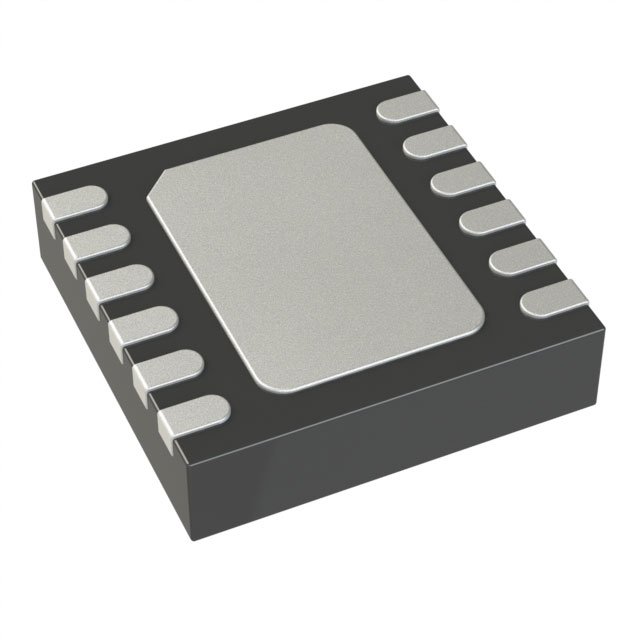

| Part Number | MAX25014ATG/V+T | MAX25014ATG/VY+ | MAX25014ATG/VY+T | MAX20050ATC+ |
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | AUTOMOTIVE LOW INPUT VOLTAGE I2C | AUTOMOTIVE LOW INPUT VOLTAGE I2C | AUTOMOTIVE LOW INPUT VOLTAGE I2C | IC LED DRVR RGLTR PWM 2A 12TDFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tape & Reel (TR) | Tube |
