MAX5060ETI+

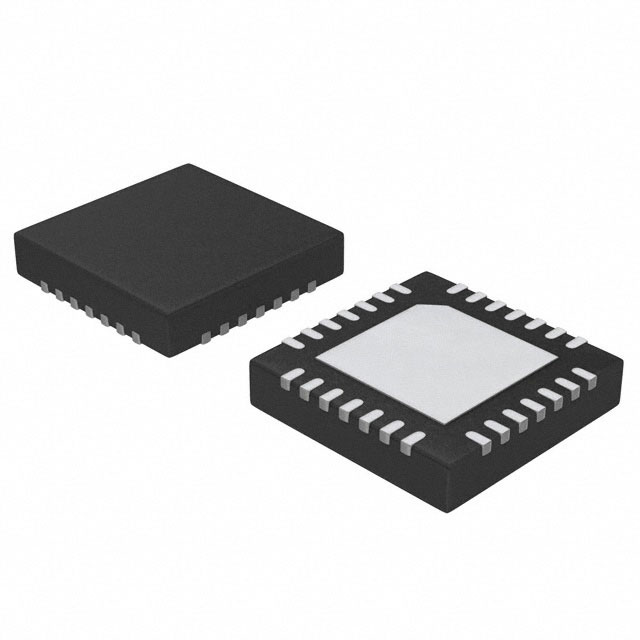

lmages are for reference only.MAX5060ETI+
IC REG CTRLR BUCK 28TQFN
Datasheet28-WFQFN Exposed Pad
60,122 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Regulator Positive Output Step-Down DC-DC Controller IC 28-TQFN (5x5)
MAX5060ETI+
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Type | Transistor Driver |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.75V ~ 28V |
| Frequency - Switching | 125kHz ~ 1.5MHz |
| Duty Cycle (Max) | - |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Current Limit, Enable, Frequency Control, Power Good |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 28-WFQFN Exposed Pad |
| Supplier Device Package | 28-TQFN (5x5) |
| Base Product Number | MAX5060 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MAX5060ETI+T | MAX5003CEE+ | MAX5003CSE | MAX5003CSE+ |
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | IC REG CTRLR BUCK 28TQFN | IC REG CTRLR BUCK 16QSOP | IC REG CTRLR BUCK 16SOIC | IC REG CTRLR BUCK 16SOIC |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tube | Tube | Tube |
