MAX742EWP+

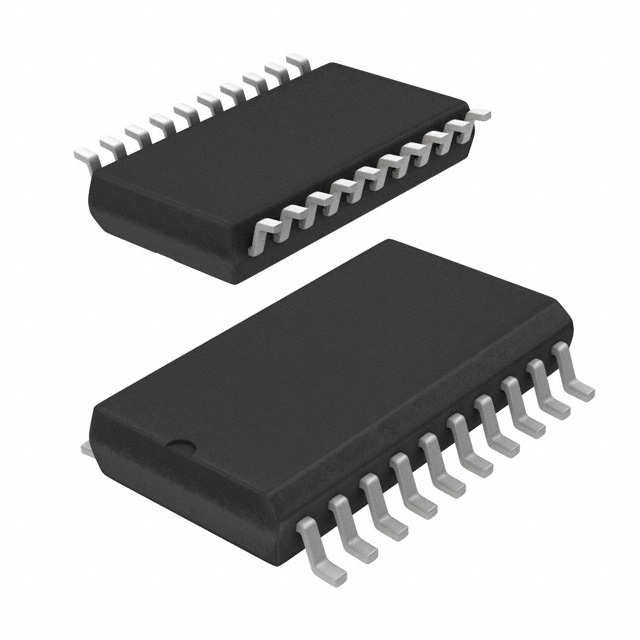

lmages are for reference only.MAX742EWP+
IC REG CTRLR BOOST 20SOIC
Datasheet20-SOIC (0.295", 7.50mm Width)
31,443 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Boost Regulator Positive or Negative Output Step-Up DC-DC Controller IC 20-SOIC
MAX742EWP+
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Output Type | Transistor Driver |
| Function | Step-Up |
| Output Configuration | Positive or Negative |
| Topology | Boost |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.2V ~ 10V |
| Frequency - Switching | 100kHz, 200kHz |
| Duty Cycle (Max) | 90% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 20-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 20-SOIC |
| Base Product Number | MAX742 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MAX742EPP+ | MAX742EWP+T | MAX741DCAP+ | MAX741DCAP+T |
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG CTRLR BOOST 20DIP | IC REG CTRLR BOOST 20SOIC | IC REG CTRLR BUCK/BOOST 20SSOP | IC REG CTRLR BUCK/BOOST 20SSOP |
| Series | - | - | - | - |
| Packaging | Tube | Tape & Reel (TR) | Tube | Tape & Reel (TR) |
