MAX860MSA/PR2
lmages are for reference only.MAX860MSA/PR2
IC REG CHARG PUMP INV 50MA 8SOIC
Datasheet8-SOIC (0.154", 3.90mm Width)
51,195 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Charge Pump Switching Regulator IC Positive or Negative Fixed -Vin, 2Vin 1 Output 50mA 8-SOIC (0.154", 3.90mm Width)
MAX860MSA/PR2
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Series | - |
| Packaging | Bulk |
| RoHS Status | RoHS non-compliant |
| Function | Ratiometric |
| Output Configuration | Positive or Negative |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.5V, 2.5V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin |
| Voltage - Output (Max) | - |
| Current - Output | 50mA |
| Frequency - Switching | 6kHz, 50kHz, 130kHz |
| Synchronous Rectifier | No |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
| Base Product Number | MAX860 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MAX17223ELT+T | MAX631AESA+T | MAX1896EUT#G16 | MAX1687EUE+T |
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

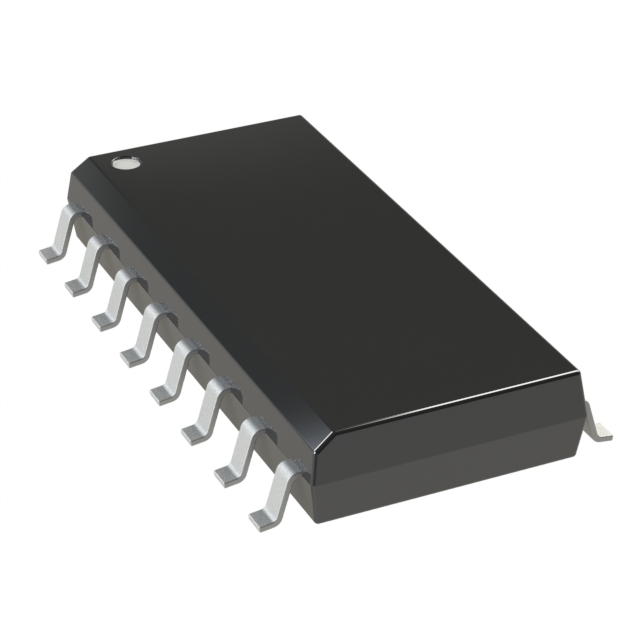

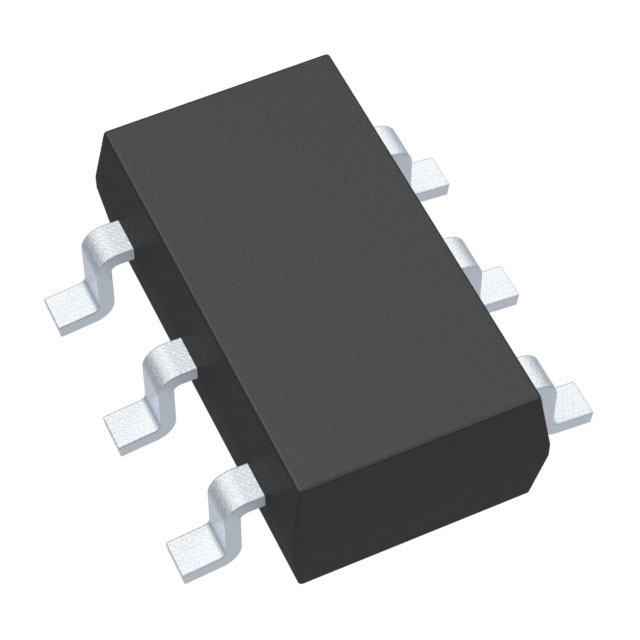

| Description | IC REG BOOST ADJ 500MA 6UDFN | IC REG BST ADJ/1.31V 450MA 8SOIC | IC REG BST SEPIC ADJ 500MA SOT6 | IC REG BOOST ADJ 730MA 16TSSOP |
| Series | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
