Product CatalogPart Number
MB2S
Manufacturer
Diotec SemiconductorDescription
BRIDGE 1PH TO269AA/MINIDIL 200V
Datasheet
DatasheetPackage
TO-269AA, 4-BESOP
In Stock
70,771 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MB2S
MB2S
lmages are for reference only.Payment Methods
Delivery Services
Bridge Rectifier Single Phase Standard 200 V Surface Mount TO-269AA MINIDIL SLIM
Quick Inquiry
MB2S
Specifications
| Category | Discrete Semiconductor Products - Diodes - Bridge Rectifiers |
| Manufacturer | Diotec Semiconductor |
| Series | - |
| Packaging | Cut Tape (CT)-->Bulk |
| RoHS Status | ROHS3 Compliant |
| Diode Type | Single Phase |
| Technology | Standard |
| Voltage - Peak Reverse (Max) | 200 V |
| Current - Average Rectified (Io) | 500 mA |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 400 mA |
| Current - Reverse Leakage @ Vr | 5 µA @ 200 V |
| Operating Temperature | -50°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-269AA, 4-BESOP |
| Supplier Device Package | TO-269AA MINIDIL SLIM |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

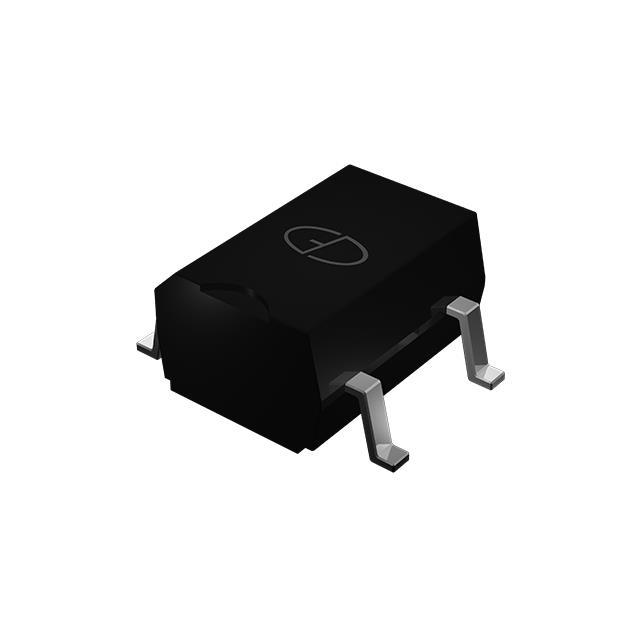

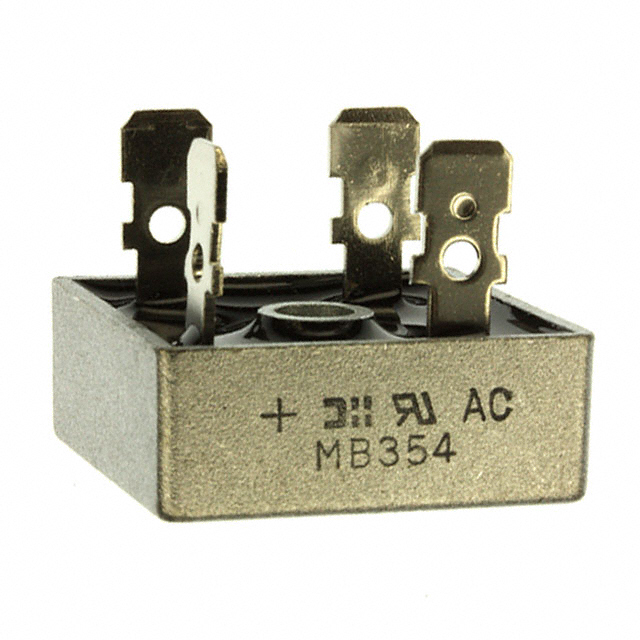

| Part Number | MB210S | MB210S-TP | MB22S-TP | MB2505 |
| Manufacturer | Good-Ark Semiconductor | Micro Commercial Co | Micro Commercial Co | Diodes Incorporated |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | BRIDGE RECTIFIER, SCHOTTKY, 2.0A | BRIDGE RECT 1PHASE 100V 2A MBS-1 | BRIDGE RECT 20V 2A MBS-1 | BRIDGE RECT 1PHASE 50V 25A MB |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
Customers Also Interested in
Recommended Products
MB2S
SMC Diode Solutions
MB2S
onsemi
MB2S
Good-Ark Semiconductor

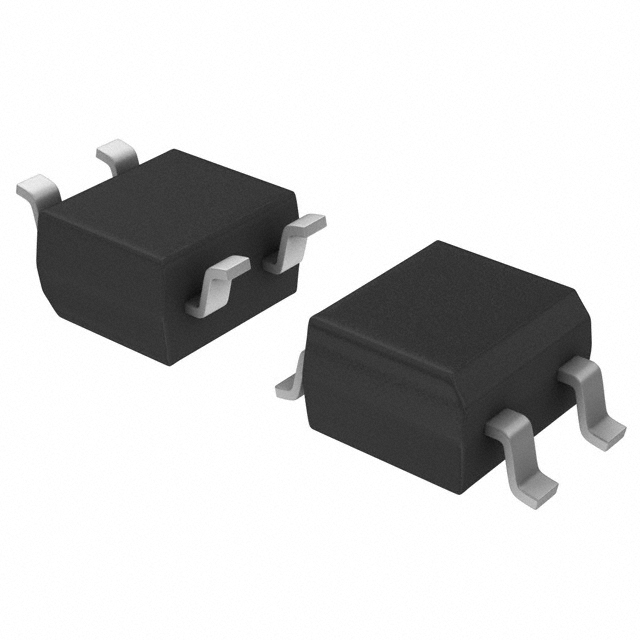

MB2S-E3/45
