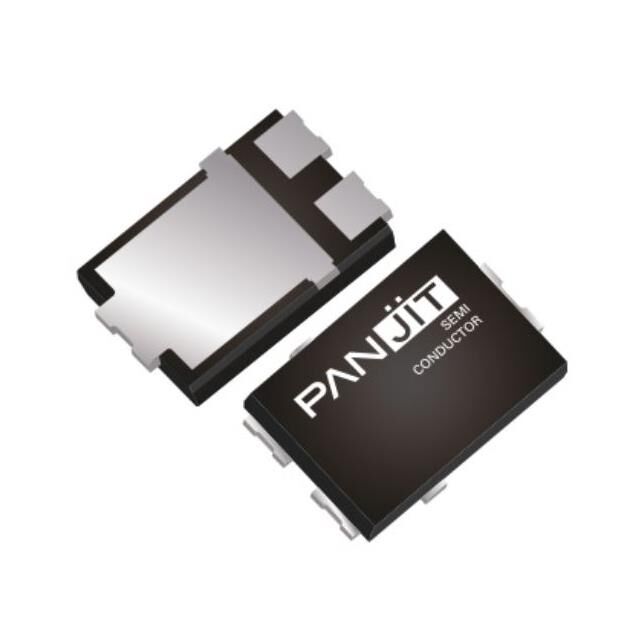

Diode 120 V 15A Surface Mount TO-277C
MBR15H120PC-AU_R2_007A1
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Panjit International Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 120 V |
| Current - Average Rectified (Io) | 15A |
| Voltage - Forward (Vf) (Max) @ If | 870 mV @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 1 µA @ 120 V |
| Capacitance @ Vr, F | 300pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-277, 3-PowerDFN |
| Supplier Device Package | TO-277C |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
|
| Part Number | MBR15H120PC_R2_00701 | MB10H100HE3_B/I | MB10H100HE3_B/P | MB10H90HE3_A/I |
| Manufacturer | Panjit International Inc. | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 120V, SCHOTTKY, TO-277C, 15A | DIODE SCHOTTKY 100V 10A TO263AB | DIODE SCHOTTKY 100V 10A TO263AB | DIODE SCHOTTKY 90V 10A TO263AB |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR) |
