MBR20150FCTH-BP

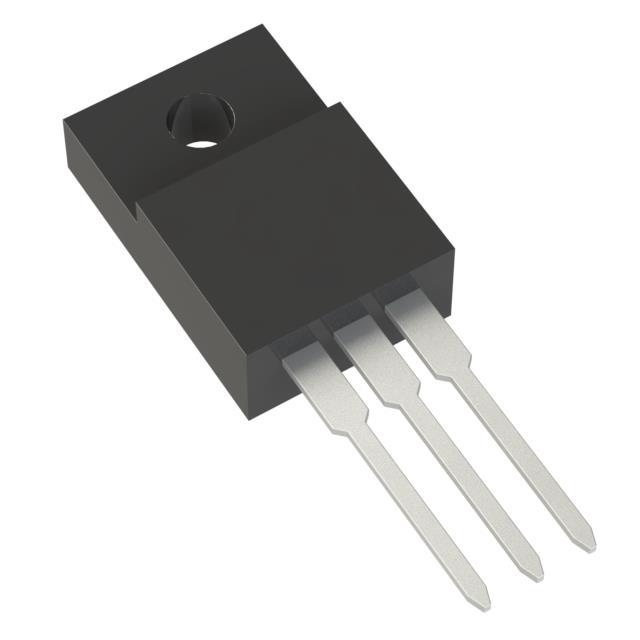

lmages are for reference only.MBR20150FCTH-BP
DIODE ARR SCHOTTKY 150V ITO220AB
DatasheetTO-220-3 Isolated Tab
97,451 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode Array 1 Pair Common Cathode 150 V 20A Through Hole TO-220-3 Isolated Tab
MBR20150FCTH-BP
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Current - Average Rectified (Io) (per Diode) | 20A |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 10 µA @ 150 V |
| Operating Temperature - Junction | -55°C ~ 175°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 Isolated Tab |
| Supplier Device Package | ITO-220AB |
| Base Product Number | MBR20150 |
| Reverse Recovery Time (trr) | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | MBR20150FCT-BP | MBR20150FCT_T0_00001 | MBR200100CT | MBR200100CTR |
| Manufacturer | Micro Commercial Co | Panjit International Inc. | GeneSiC Semiconductor | GeneSiC Semiconductor |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | |
| Description | DIODE ARR SCHOTTKY 150V ITO220AB | DIODE ARR SCHOTTKY 150V ITO220AB | DIODE MOD SCHOT 100V 200A 2TOWER | DIODE MOD SCHOT 100V 200A 2TOWER |
| Series | - | - | - | - |
| Packaging | Bulk | Tube | Bulk | Bulk |
