MBRF1045

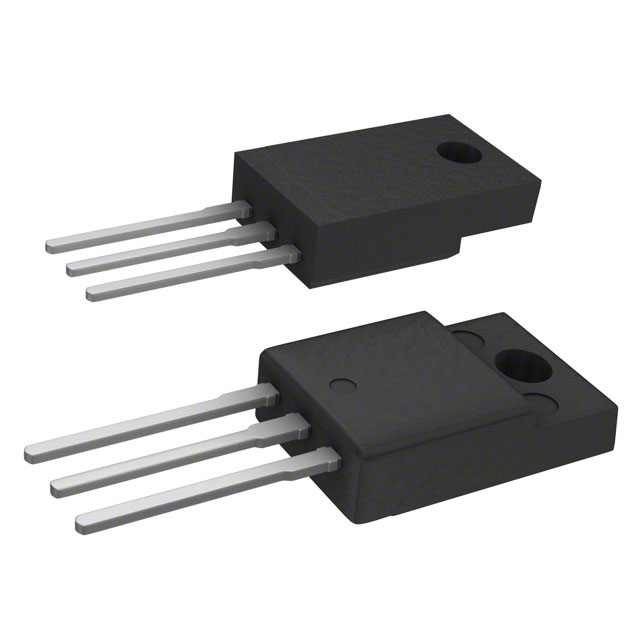

lmages are for reference only.MBRF1045
DIODE SCHOTTKY 45V 10A ITO220AC
DatasheetTO-220-2 Full Pack
73,896 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 45 V 10A Through Hole ITO-220AC
MBRF1045
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Current - Average Rectified (Io) | 10A |
| Voltage - Forward (Vf) (Max) @ If | 700 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 100 µA @ 45 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 Full Pack |
| Supplier Device Package | ITO-220AC |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | MBRF104 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | MBRF1045 | MBRF1045 C0G | MBRF1045-E3/45 | MBRF1045H |
| Manufacturer | SMC Diode Solutions | Taiwan Semiconductor Corporation | Vishay General Semiconductor - Diodes Division | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | DIODE SCHOTTKY 45V ITO220AC | DIODE SCHOTTKY 45V 10A ITO220AC | DIODE SCHOTTKY 45V 10A ITO220AC | 10A, 45V, PLANAR SCHOTTKY |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
