MBRF2045 C0G

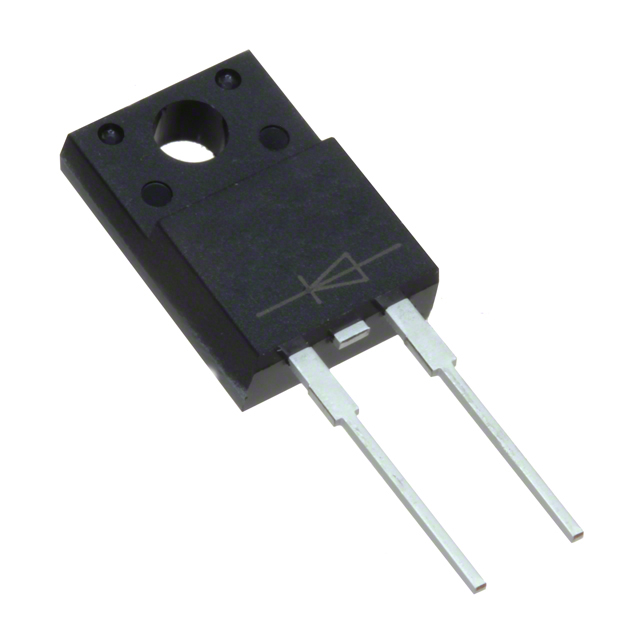

lmages are for reference only.MBRF2045 C0G
DIODE SCHOTTKY 45V 20A ITO220AC
DatasheetTO-220-2 Full Pack
71,902 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 45 V 20A Through Hole ITO-220AC
MBRF2045 C0G
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Current - Average Rectified (Io) | 20A |
| Voltage - Forward (Vf) (Max) @ If | 750 mV @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 200 µA @ 45 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-220-2 Full Pack |
| Supplier Device Package | ITO-220AC |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Base Product Number | MBRF2045 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | MBRF20100 | MBRF20100 | MBRF20100 C0G | MBRF20100H |
| Manufacturer | SMC Diode Solutions | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 100V, 20A, ITO-220AC, DIODE SCHO | DIODE SCHOTTKY 100V 20A ITO220AC | DIODE SCHOTTKY 100V 20A ITO220AC | 20A, 100V, PLANAR SCHOTTKY |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tube | Tube |
