Product CatalogPart Number
MBRL40120CT-BP
Manufacturer
Micro Commercial CoDescription
DIODE ARR SCHOT 120V 40A TO220AB
Datasheet
DatasheetPackage
TO-220-3
In Stock
26,112 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

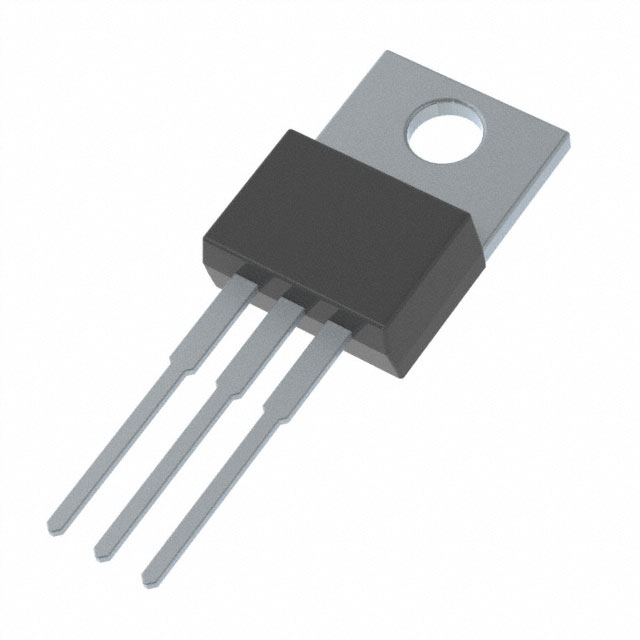

MBRL40120CT-BP
MBRL40120CT-BP
lmages are for reference only.Payment Methods
Delivery Services
Diode Array 1 Pair Common Cathode 120 V 40A Through Hole TO-220-3
Quick Inquiry
MBRL40120CT-BP
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Bulk |
| RoHS Status | |
| Diode Configuration | 1 Pair Common Cathode |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 120 V |
| Current - Average Rectified (Io) (per Diode) | 40A |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Current - Reverse Leakage @ Vr | 100 µA @ 120 V |
| Operating Temperature - Junction | -55°C ~ 150°C |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220AB |
| Base Product Number | MBRL40120 |
| Reverse Recovery Time (trr) | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

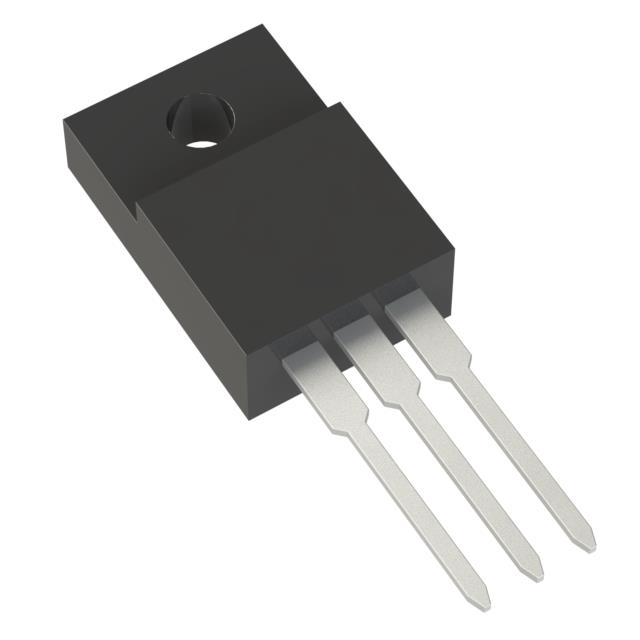

| Part Number | MBRL10100CT-BP | MBRL10100FCT-BP | MBRL1060CT-BP | MBRL1060FCT-BP |
| Manufacturer | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co |
| RoHS Status | ||||
| Description | DIODE ARR SCHOT 100V 10A TO220AB | DIODE ARR SCHOTTKY 100V ITO220AB | DIODE ARR SCHOT 60V 10A ITO220AB | DIODE ARR SCHOT 60V 10A ITO220AB |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
