MC14543BDR2
Manufacturer
onsemiDescription
IC DRVR 7 SEGMENT 16SOIC
Datasheet
DatasheetPackage
16-SOIC (0.154", 3.90mm Width)
In Stock
38,100 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MC14543BDR2
MC14543BDR2
lmages are for reference only.Payment Methods
Delivery Services

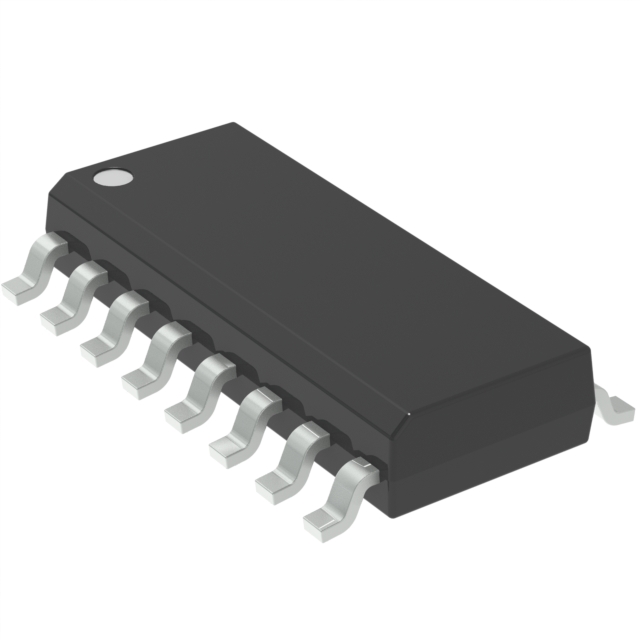

LCD Driver 16-SOIC
Quick Inquiry
MC14543BDR2
Specifications
| Category | Integrated Circuits (ICs) - Power Management PMIC - Display Drivers |
| Manufacturer | onsemi |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS non-compliant |
| Display Type | LCD |
| Configuration | 7 Segment |
| Interface | BCD |
| Digits or Characters | - |
| Current - Supply | 10 µA |
| Voltage - Supply | 3V ~ 18V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| Base Product Number | MC14543 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
|
 |
| Part Number | MC14543BDR2 | MC14543BDR2G | MC14543BDR2G | MC14543BCPG |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | IC DRVR 7 SEGMENT 16SOIC | IC DRVR 7 SEGMENT 16SOIC | IC DRVR 7 SEGMENT 16SOIC | IC DRVR 7 SEGMENT 16DIP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
