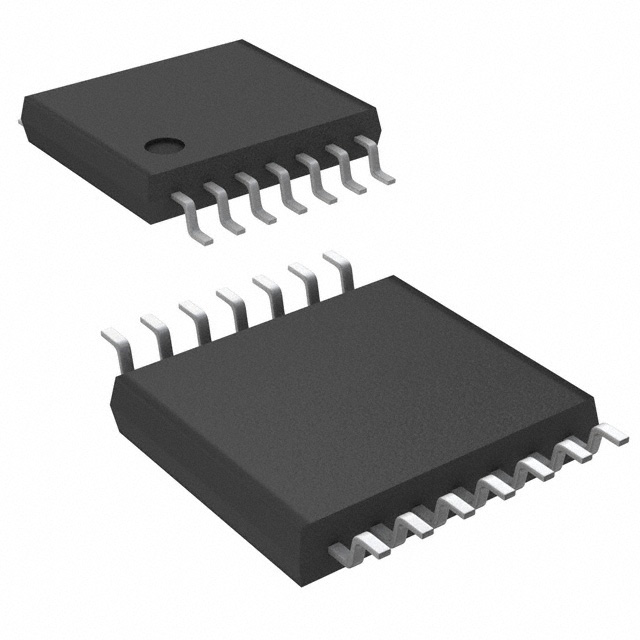

NAND Gate IC 4 Channel 14-TSSOP
MC74LCX00DTG
| Category | Integrated Circuits (ICs) - Logic - Gates and Inverters |
| Manufacturer | onsemi |
| Series | 74LCX |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | 74LCX00 |
| Logic Type | NAND Gate |
| Number of Circuits | 4 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 3.6V |
| Current - Quiescent (Max) | 10 µA |
| Current - Output High, Low | 24mA, 24mA |
| Input Logic Level - Low | 0.7V ~ 0.8V |
| Input Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 5.5ns @ 3.3V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 14-TSSOP |
| Package / Case | 14-TSSOP (0.173", 4.40mm Width) |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MC74LCX00DT | MC74LCX00DTEL | MC74LCX00DTR2 | MC74LCX00DTR2G |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | ROHS3 Compliant |
| Description | IC GATE NAND 4CH 2-INP 14TSSOP | IC GATE NAND 14PDSO | IC GATE NAND 4CH 2-INP 14TSSOP | IC GATE NAND 4CH 2-INP 14TSSOP |
| Series | 74LCX | * | 74LCX | 74LCX |
| Packaging | Tube | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
