MC9S08LL16CGT
lmages are for reference only.MC9S08LL16CGT
IC MCU 8BIT 16KB FLASH 48QFN
Datasheet48-VFQFN Exposed Pad
17,009 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
S08 S08 Microcontroller IC 8-Bit 20MHz 16KB (16K x 8) FLASH 48-QFN-EP (7x7)
MC9S08LL16CGT
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Freescale Semiconductor |
| Series | S08 |
| Packaging | Bulk |
| RoHS Status | |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | I2C, SCI, SPI |
| Peripherals | LCD, LVD, POR, PWM, WDT |
| Number of I/O | 31 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 2K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 8x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 48-QFN-EP (7x7) |
| Package / Case | 48-VFQFN Exposed Pad |
| Base Product Number | MC9S08 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
|
| Part Number | MC9S08LL16CGT | MC9S08LL16CGTR | MC9S08LL16CLF | MC9S08LL16CLF |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |

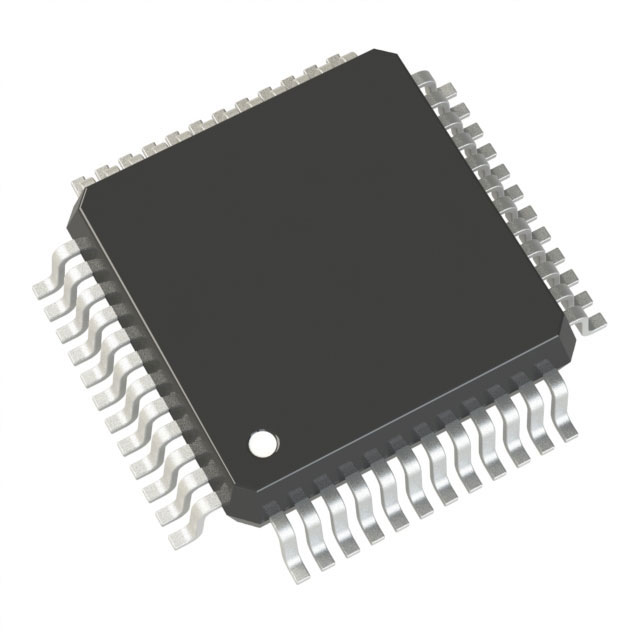

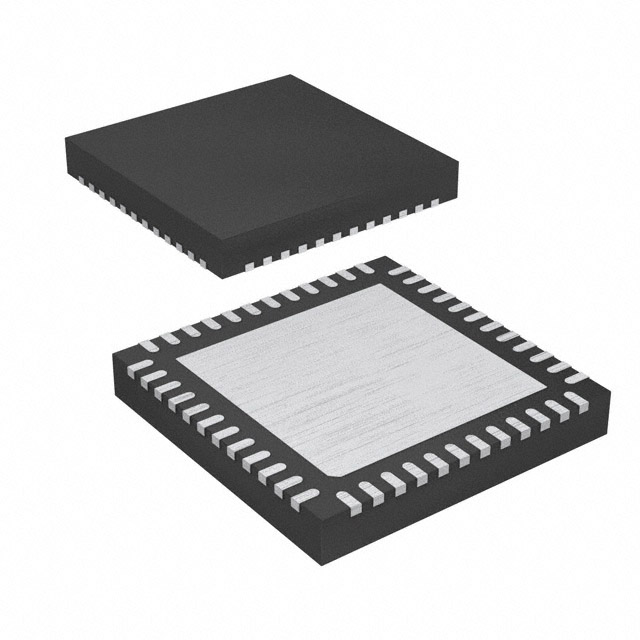

| Description | IC MCU 8BIT 16KB FLASH 48QFN | IC MCU 8BIT 16KB FLASH 48QFN | MICROCONTROLLER, 8-BIT, HC08/S08 | IC MCU 8BIT 16KB FLASH 48LQFP |
| Series | NXP USA Inc. | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. |
| Packaging | Tray | Tape & Reel (TR) | Bulk | Tray |
