MC9S08QA2CFQE

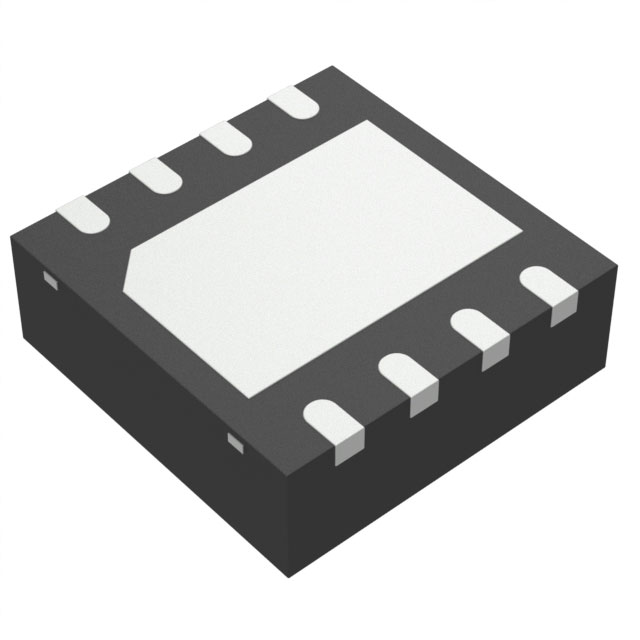

lmages are for reference only.MC9S08QA2CFQE
IC MCU 8BIT 2KB FLASH 8DFN
Datasheet8-VDFN Exposed Pad
19,551 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
S08 S08 Microcontroller IC 8-Bit 20MHz 2KB (2K x 8) FLASH 8-DFN-EP (4x4)
MC9S08QA2CFQE
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Freescale Semiconductor |
| Series | S08 |
| Packaging | Bulk |
| RoHS Status | |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | - |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 4 |
| Program Memory Size | 2KB (2K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 160 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V |
| Data Converters | A/D 4x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN-EP (4x4) |
| Package / Case | 8-VDFN Exposed Pad |
| Base Product Number | MC9S08 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | MC9S08QA2CDNE | MC9S08QA2CFQE | MC9S08QA2CPAE | MC9S08QA4CDNE |
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP Semiconductors |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | IC MCU 8BIT 2KB FLASH 8SOIC | IC MCU 8BIT 2KB FLASH 8DFN | IC MCU 8BIT 2KB FLASH 8DIP | IC MCU 8BIT 4KB FLASH 8SOIC |
| Series | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP Semiconductors |
| Packaging | Tube | Tray | Tube | Bulk |
