MC9S08SE8VTGR
lmages are for reference only.MC9S08SE8VTGR
IC MCU 8BIT 8KB FLASH 16TSSOP
Datasheet16-TSSOP (0.173", 4.40mm Width)
92,992 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
S08 S08 Microcontroller IC 8-Bit 20MHz 8KB (8K x 8) FLASH 16-TSSOP
MC9S08SE8VTGR
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | NXP USA Inc. |
| Series | S08 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 20MHz |
| Connectivity | LINbus, SCI |
| Peripherals | LVD, POR, PWM |
| Number of I/O | 14 |
| Program Memory Size | 8KB (8K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 512 x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 10x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-TSSOP |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) |
| Base Product Number | MC9S08 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MC9S08SE8VTG | MC9S08SE8VRL | MC9S08SE8VWL | MC9S08SE8VWLR |
| Manufacturer | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | NXP USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

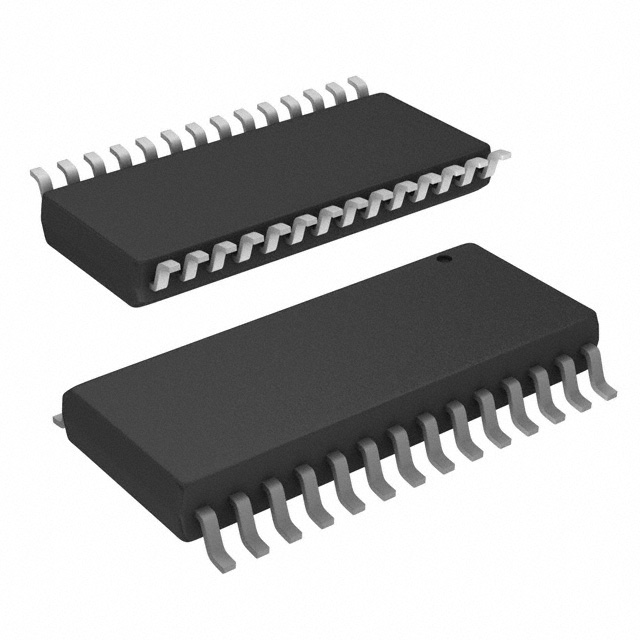

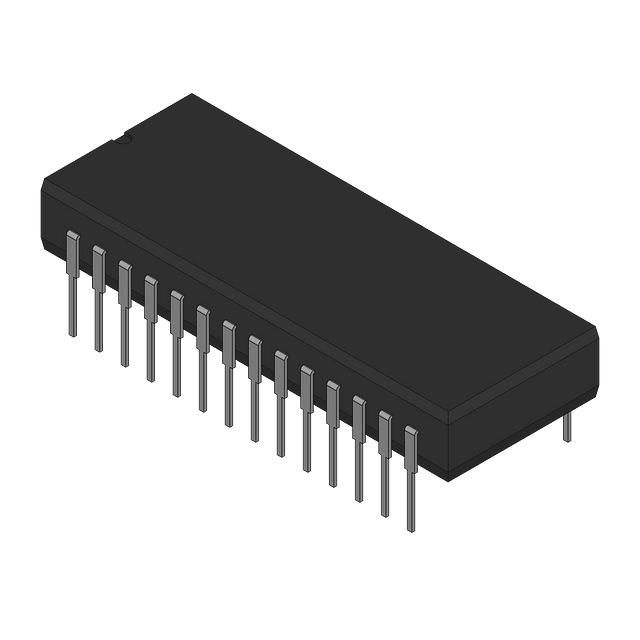

| Description | IC MCU 8BIT 8KB FLASH 16TSSOP | IC MCU 8BIT 8KB FLASH 28DIP | IC MCU 8BIT 8KB FLASH 28SOIC | IC MCU 8BIT 8KB FLASH 28SOIC |
| Series | NXP USA Inc. | Freescale Semiconductor | NXP USA Inc. | NXP USA Inc. |
| Packaging | Tube | Tube | Tube | Tape & Reel (TR) |
