Product CatalogPart Number
MCL0603FRD1GR1T-CT
Manufacturer
VenkelDescription
LED GREEN/RED CLEAR 0603 SMD
Datasheet
DatasheetPackage
0603 (1608 Metric)
In Stock
45,332 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
MCL0603FRD1GR1T-CT
MCL0603FRD1GR1T-CT
lmages are for reference only.Payment Methods
Delivery Services
Green, Red 630nm Red, 574nm Green LED Indication - Discrete 1.5V Red, 1.7V Green 0603 (1608 Metric)
Quick Inquiry
MCL0603FRD1GR1T-CT
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Venkel |
| Series | MCL |
| Packaging | Strip |
| RoHS Status | RoHS Compliant |
| Color | Green, Red |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 200mcd Red, 125mcd Green |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.00mm x 0.80mm |
| Voltage - Forward (Vf) (Typ) | 1.5V Red, 1.7V Green |
| Current - Test | 20mA |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 630nm Red, 574nm Green |
| Wavelength - Peak | 642nm Red, 575nm Green |
| Features | - |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 1.60mm L x 0.80mm W |
| Height (Max) | 0.50mm |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

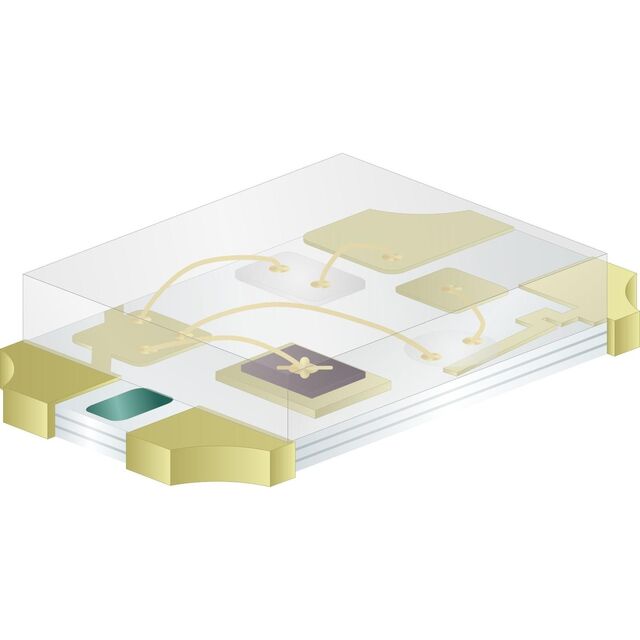

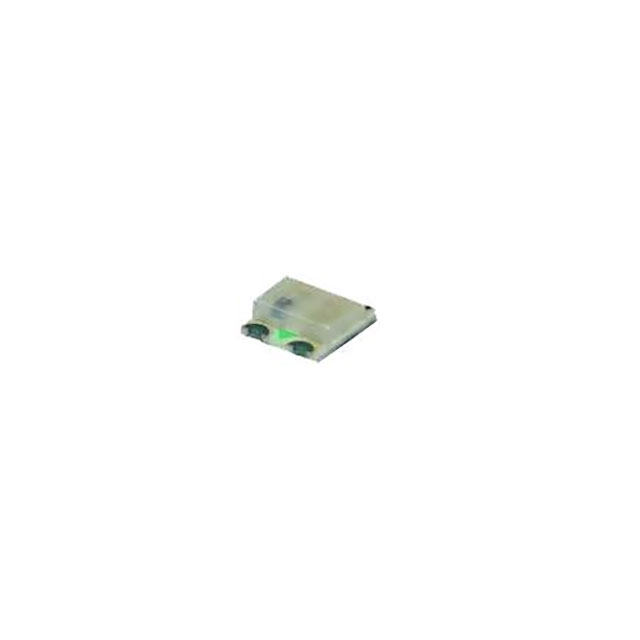

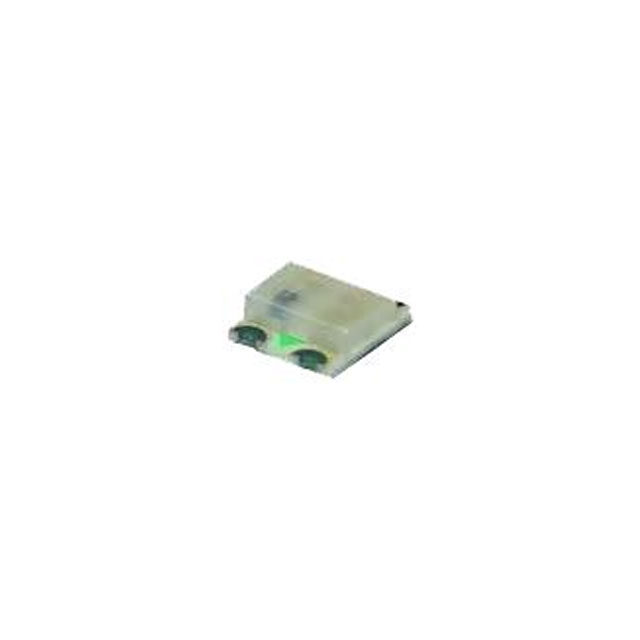

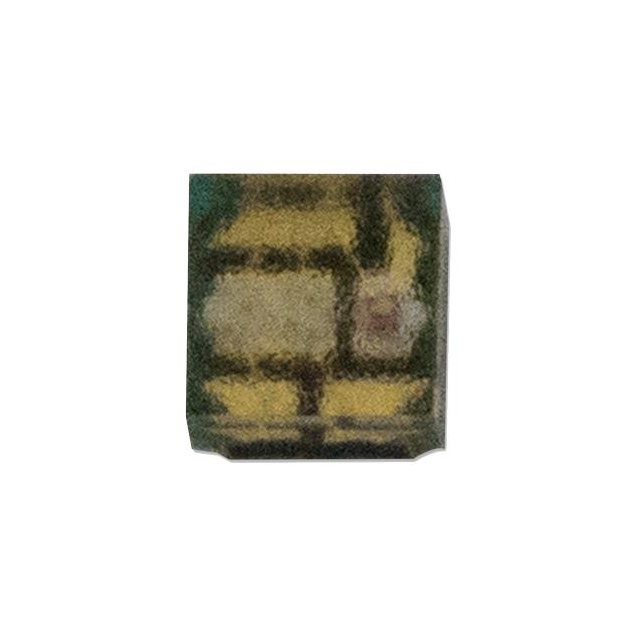

| Part Number | MCL0603FRD1GR1T | MCL0603FRD1GR2T | MCL0603FRD1GR2T-CT | MCL0404FRGB1U |
| Manufacturer | Venkel | Venkel | Venkel | Venkel |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | LED GREEN/RED CLEAR 0603 SMD | LED GREEN/RED CLEAR 0603 SMD | LED GREEN/RED CLEAR 0603 SMD | LED RGB CLEAR 0404 SMD |
| Series | Venkel | Venkel | Venkel | Venkel |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Strip | Tape & Reel (TR) |
