MCM1012B900F06BPDG
lmages are for reference only.MCM1012B900F06BPDG
CMC 300MA 2LN 90 OHM SMD
Datasheet0504 (1210 Metric), 4 Lead
23,932 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 300mA DCR 600mOhm
MCM1012B900F06BPDG
| Category | Filters - Common Mode Chokes - |
| Manufacturer | INPAQ Technology Co., Ltd |
| Series | MCM1012B |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 300mA |
| DC Resistance (DCR) (Max) | 600mOhm |
| Voltage Rating - DC | 10V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.049" L x 0.039" W (1.25mm x 1.00mm) |
| Height (Max) | 0.024" (0.60mm) |
| Package / Case | 0504 (1210 Metric), 4 Lead |
| Base Product Number | - |
| Impedance @ Frequency | 90 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

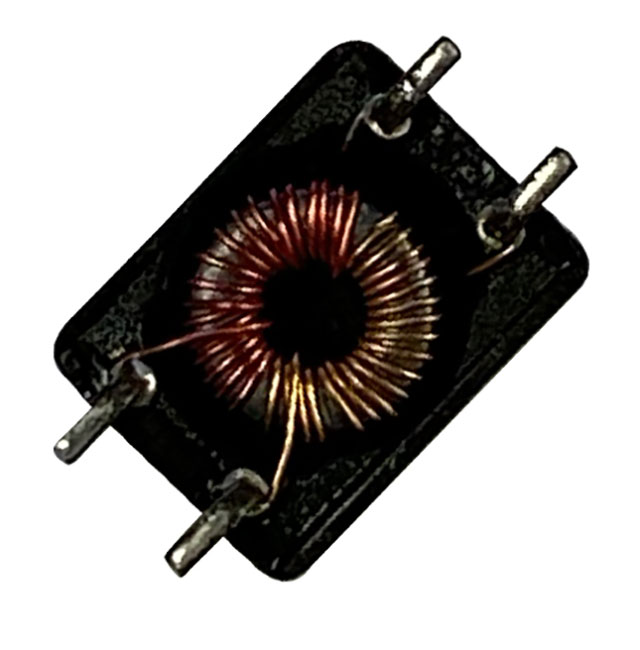

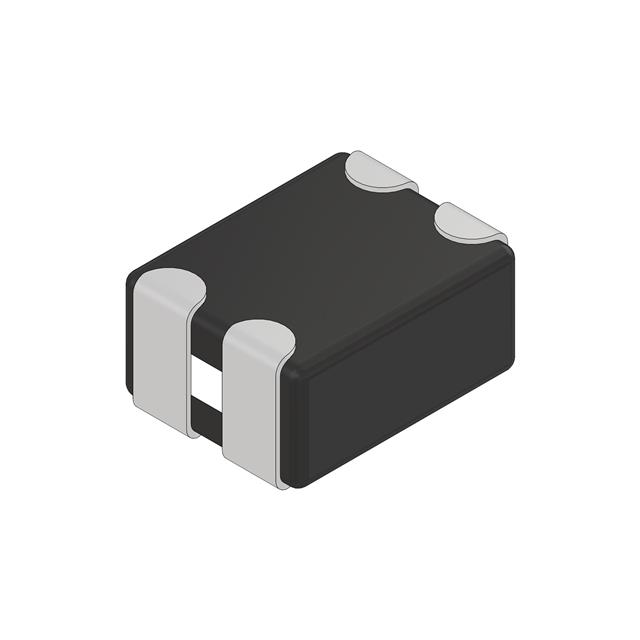

| Part Number | MCM1012B121F06BPDG | MCM-0905-102Y | MCM-0905-102Y-E | MCM-0905-202-F |
| Manufacturer | INPAQ Technology Co., Ltd | Pulse Electronics | Pulse Electronics | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMF 1210 120OHM 300MA 2LN SMD | CMC 1MH 700MA 2LN SMD | CMC 1MH 700MA 2LN SMD | CMC MH 500MA 2LN 2K OHM SMD |
| Series | MCM1012B | MCM-0905 | MCM-0905 | MCM-0905 |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
