MCM2012B121GBEDG
lmages are for reference only.MCM2012B121GBEDG
CMF 2012 120OHM 400MA 2LN SMD
Datasheet0805 (2012 Metric), 4 PC Pad
66,803 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2 Line Common Mode Choke Surface Mount 120 Ohms @ 100 MHz 400mA DCR 400mOhm
MCM2012B121GBEDG
| Category | Filters - Common Mode Chokes - |
| Manufacturer | INPAQ Technology Co., Ltd |
| Series | MCM 2012 B |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Signal Line |
| Number of Lines | 2 |
| Inductance @ Frequency | - |
| Current Rating (Max) | 400mA |
| DC Resistance (DCR) (Max) | 400mOhm |
| Voltage Rating - DC | 10V |
| Voltage Rating - AC | - |
| Operating Temperature | -40°C ~ 85°C |
| Ratings | - |
| Approval Agency | - |
| Features | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height (Max) | 0.043" (1.10mm) |
| Package / Case | 0805 (2012 Metric), 4 PC Pad |
| Base Product Number | - |
| Impedance @ Frequency | 120 Ohms @ 100 MHz |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

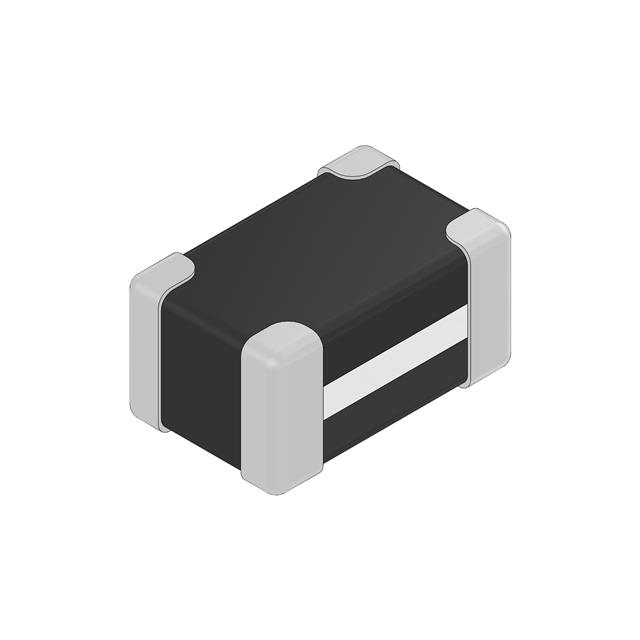

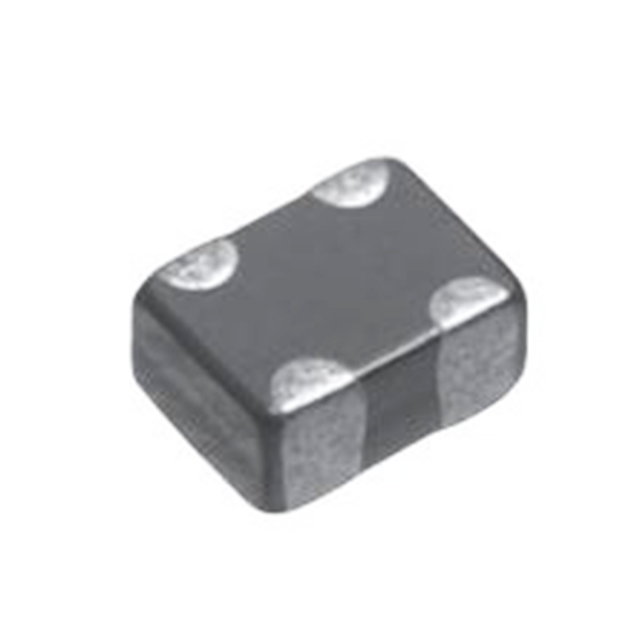

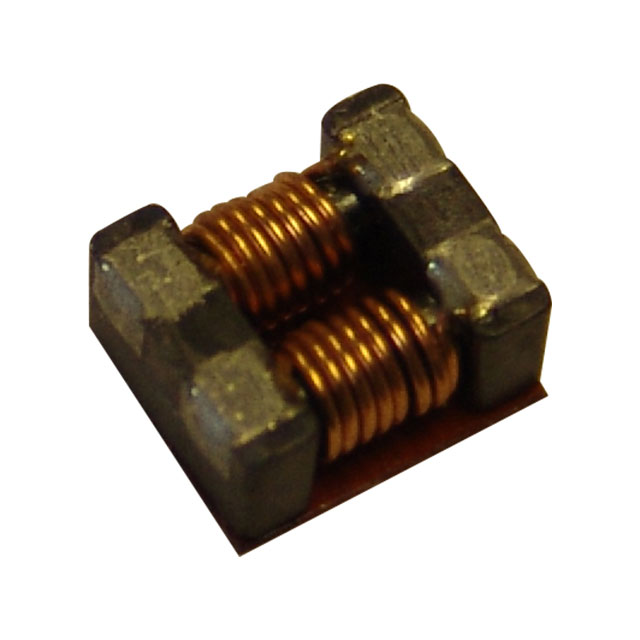

| Part Number | MCM2012B161GBEDG | MCM2012B900GBEDG | MCZ0806AH220L2TA0G | MCM-7060M-102 |
| Manufacturer | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | TDK Corporation | Pulse Electronics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CMF 2012 160OHM 400MA 2LN SMD | CMF 2012 90OHM 400MA 2LN SMD | CMC 100MA 2LN 22 OHM SMD | CMC 3A 2LN 1.02K OHM SMD |
| Series | MCM 2012 B | MCM 2012 B | MCZ-AH | MCM-7060M |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
