MCMNP2065A-TP

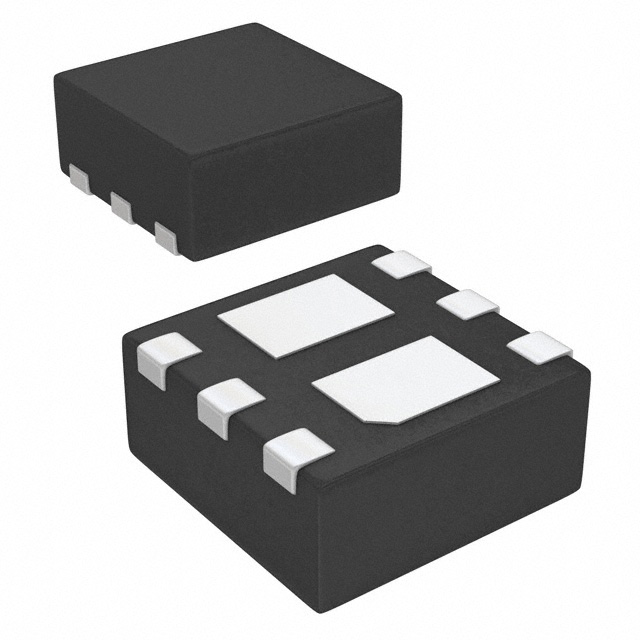

lmages are for reference only.MCMNP2065A-TP
MOSFET N/P-CH 20V 6A 6DFN
Datasheet6-VDFN Exposed Pad
23,358 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 20V 6A (Ta), 4A (Ta) 2W Surface Mount DFN2020-6L
MCMNP2065A-TP
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | N and P-Channel |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 20V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta), 4A (Ta) |
| Rds On (Max) @ Id, Vgs | 25mOhm @ 5A, 4.5V, 51mOhm @ 3.4A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7.65nC @ 4.5V, 5.41nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 418pF @ 10V, 880pF @ 6V |
| Power - Max | 2W |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad |
| Supplier Device Package | DFN2020-6L |
| Base Product Number | MCMNP2065 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
 |
| Part Number | MCMNP2065-TP | MCM2301-TP | MCM3400A-TP | MCMNP517-TP |
| Manufacturer | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N/P-CH 20V 6A 6DFN | MOSFET 2P-CH 20V 3.8A 6DFN | MOSFET 2N-CH 30V 5A 6DFN | MOSFET N/P-CH 12V 6A/4.1A 6DFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
