MCP1642BT-18I/MC
lmages are for reference only.MCP1642BT-18I/MC
IC REG BOOST 1.8V 800MA 8DFN
Datasheet8-VFDFN Exposed Pad
15,746 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Boost Switching Regulator IC Positive Fixed 1.8V 1 Output 800mA 8-VFDFN Exposed Pad
MCP1642BT-18I/MC
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 0.65V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Current - Output | 800mA |
| Frequency - Switching | 1MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad |
| Supplier Device Package | 8-DFN (2x3) |
| Base Product Number | MCP1642 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | MCP1642BT-18I/MS | MCP1642BT-30I/MS | MCP1642BT-33I/MC | MCP1642BT-33I/MS |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

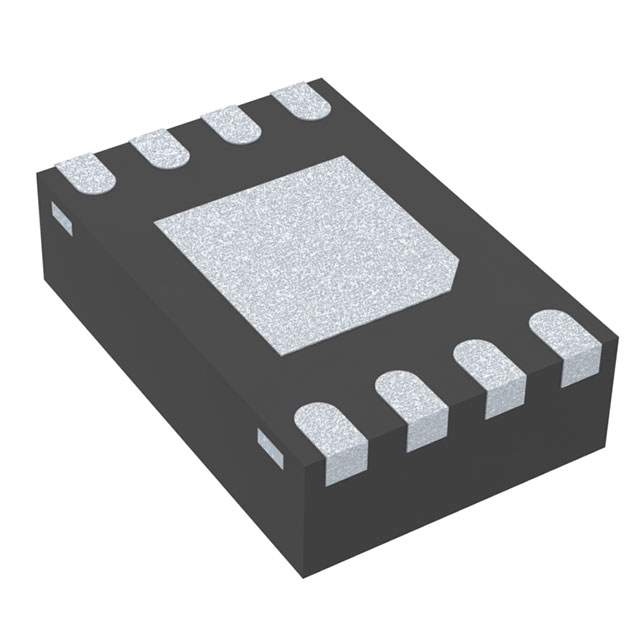

| Description | IC REG BOOST 1.8V 800MA 8MSOP | IC REG BOOST 3V 800MA 8MSOP | IC REG BOOST 3.3V 800MA 8DFN | IC REG BOOST 3.3V 800MA 8MSOP |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) | Tape & Reel (TR) |
