MCP1804T-2502I/DB
lmages are for reference only.MCP1804T-2502I/DB
IC REG LIN 2.5V 100MA SOT223-3
DatasheetTO-261-4, TO-261AA
39,455 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-223-3
MCP1804T-2502I/DB
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 28V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.9V @ 100mA |
| Current - Output | 100mA |
| Current - Quiescent (Iq) | 105 µA |
| PSRR | 50dB (1kHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| Base Product Number | MCP1804 |
| Current - Supply (Max) | 125 µA |
| Product Attribute |  |
 |
 |
 |
| Part Number | MCP1804T-2502I/MB | MCP1804T-2502I/MT | MCP1804T-2502I/OT | MCP1804T-1802I/DB |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

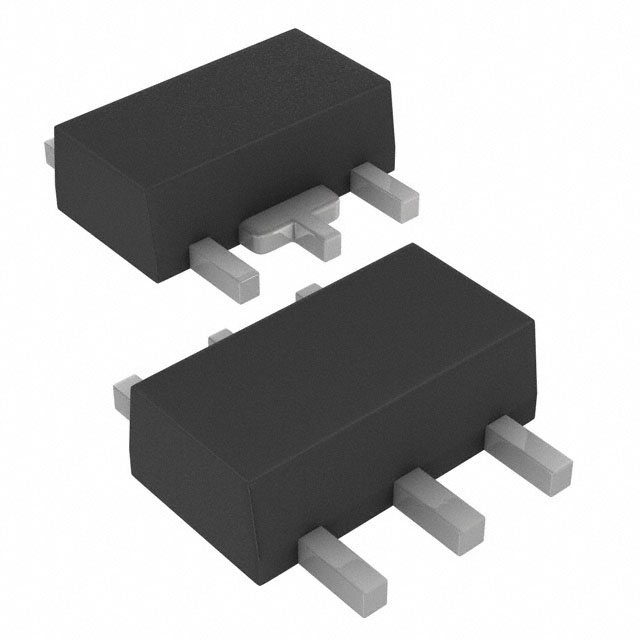

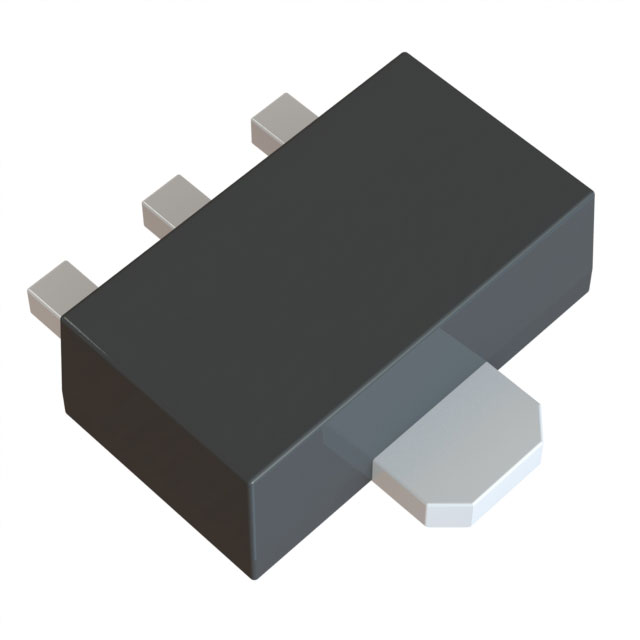

| Description | IC REG LINEAR 2.5V 100MA SOT89-3 | IC REG LINEAR 2.5V 100MA SOT89-5 | IC REG LINEAR 2.5V 100MA SOT23-5 | IC REG LIN 1.8V 100MA SOT223-3 |
| Series | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
