MCP4531T-502E/MF

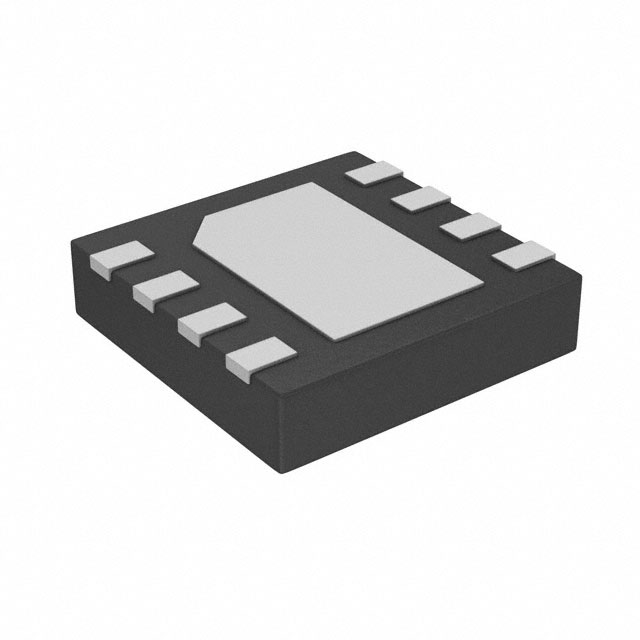

lmages are for reference only.MCP4531T-502E/MF
IC DGT POT 5KOHM 129TAP 8DFN
Datasheet8-VDFN Exposed Pad
43,336 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Digital Potentiometer 5k Ohm 1 Circuit 129 Taps I2C Interface 8-DFN (3x3)
MCP4531T-502E/MF
| Category | Integrated Circuits (ICs) - Data Acquisition - Digital Potentiometers |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Taper | Linear |
| Configuration | Potentiometer |
| Number of Circuits | 1 |
| Number of Taps | 129 |
| Resistance (Ohms) | 5k |
| Interface | I2C |
| Memory Type | Volatile |
| Voltage - Supply | 1.8V ~ 5.5V |
| Features | Selectable Address |
| Tolerance | ±20% |
| Temperature Coefficient (Typ) | 150ppm/°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-DFN (3x3) |
| Package / Case | 8-VDFN Exposed Pad |
| Operating Temperature | -40°C ~ 125°C |
| Resistance - Wiper (Ohms) (Typ) | 75 |
| Base Product Number | MCP4531 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | MCP4531T-502E/MF | MCP4531T-502E/MS | MCP4531T-502E/MS | MCP4531T-503E/MF |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC DGT POT 5KOHM 129TAP 8DFN | IC DGTL POT 5KOHM 129TAP 8MSOP | IC DGTL POT 5KOHM 129TAP 8MSOP | IC DGT POT 50KOHM 129TAP 8DFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
