MCP9805T-BE/ST

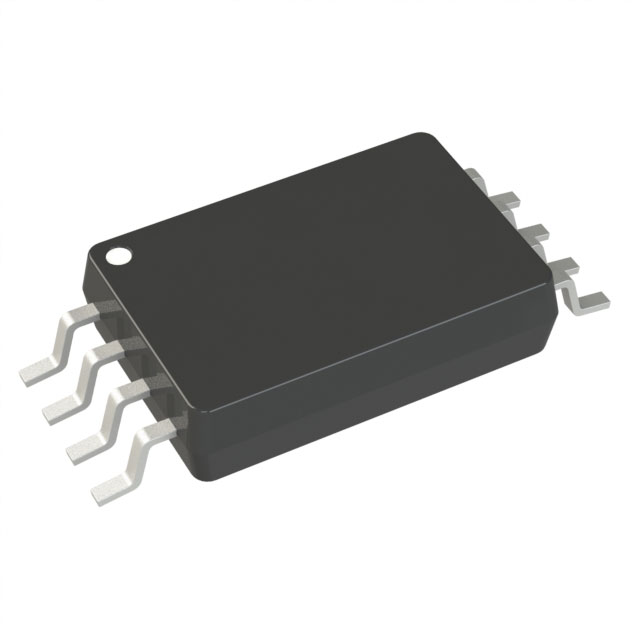

lmages are for reference only.MCP9805T-BE/ST
IC SENSOR THERMAL 3.0V 8TSSOP
Datasheet8-TSSOP (0.173", 4.40mm Width)
23,585 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Temp Monitoring System (Sensor) -40°C ~ 125°C Internal Sensor I2C/SMBus Output 8-TSSOP
MCP9805T-BE/ST
| Category | Integrated Circuits (ICs) - Power Management PMIC - Thermal Management |
| Manufacturer | Microchip Technology |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Function | Temp Monitoring System (Sensor) |
| Sensor Type | Internal |
| Sensing Temperature | -40°C ~ 125°C |
| Accuracy | ±3°C(Max) |
| Topology | ADC (Sigma Delta), Register Bank |
| Output Type | I2C/SMBus |
| Output Alarm | No |
| Output Fan | Yes |
| Voltage - Supply | 3V ~ 3.6V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 8-TSSOP |
| Base Product Number | MCP9805 |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
|
 |
| Part Number | MCP9805T-BE/ST | MCP9805T-BE/MC | MCP9805T-BE/MC | MCP9805T-BE/MNY |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

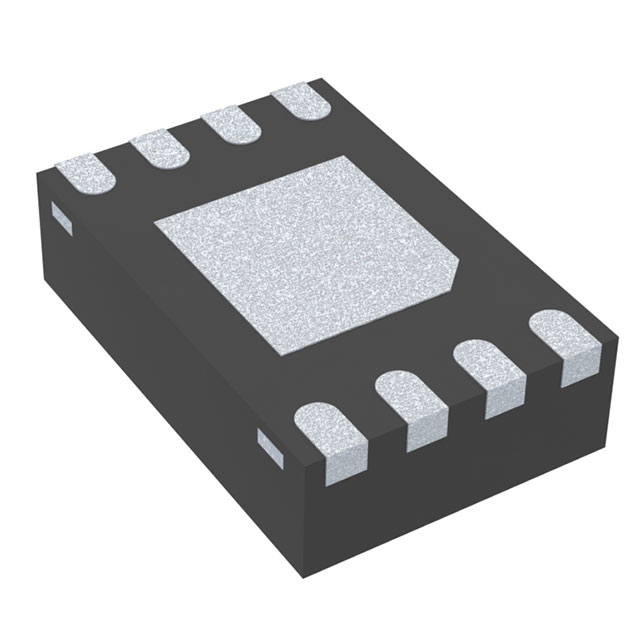

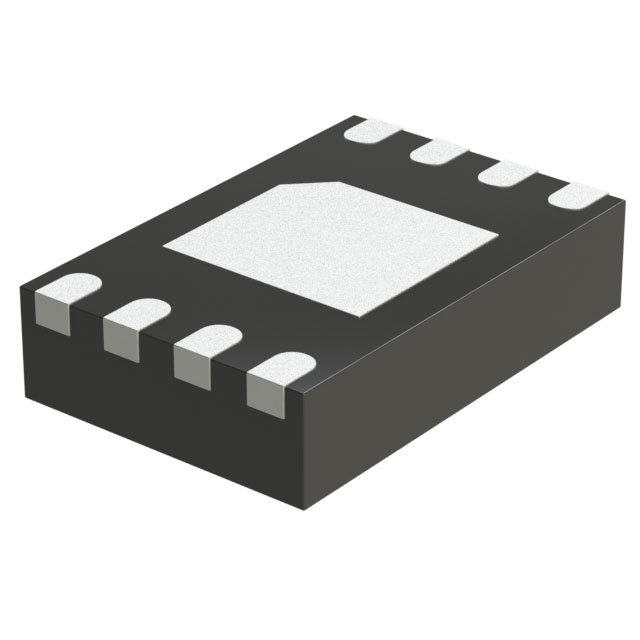

| Description | IC SENSOR THERMAL 3.0V 8TSSOP | IC SENSOR THERMAL 3.0V 8DFN | IC SENSOR THERMAL 3.0V 8DFN | IC TEMP SENSOR 2WIRE 8-TDFN |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Cut Tape (CT) |
