MCQD09N06Y-TP

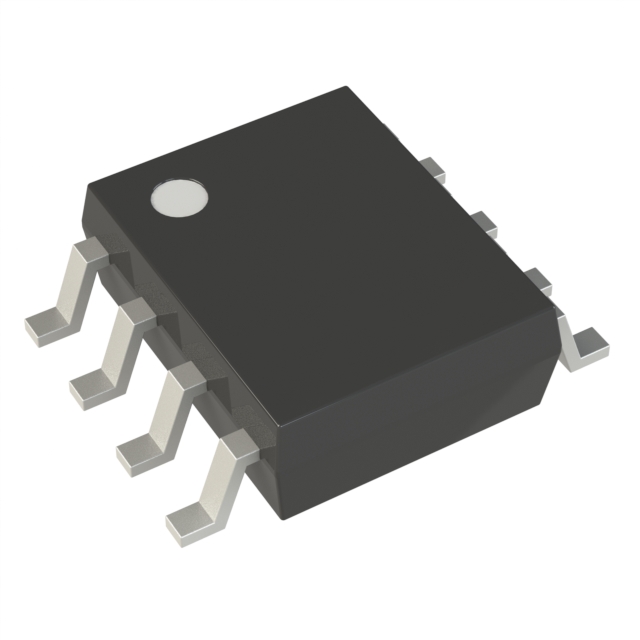

lmages are for reference only.MCQD09N06Y-TP
MOSFET 2N-CH 60V 9A 8SOP
Datasheet8-SOIC (0.154", 3.90mm Width)
43,947 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 60V 9A (Ta) 1.7W (Tj) Surface Mount 8-SOP
MCQD09N06Y-TP
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Micro Commercial Co |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 N-Channel |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Ta) |
| Rds On (Max) @ Id, Vgs | 20mOhm @ 9A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 16.5nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 873pF @ 30V |
| Power - Max | 1.7W (Tj) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | MCQ03N06-TP | MCQ03N06-TP-HF | MCQ05N06-TP | MCQ07NP03A-TP |
| Manufacturer | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co | Micro Commercial Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET 2N-CH 60V 3A 8SOP | MOSFET 2N-CH 60V 3A 8SOP | MOSFET 2N-CH 60V 5A 8SOP | MOSFET N/P-CH 30V 7A 8SOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
