MCT06030D1472BP500
lmages are for reference only.MCT06030D1472BP500
RES 14.7K OHM 0.1% 1/10W 0603
Datasheet0603 (1608 Metric)
39,429 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
14.7 kOhms ±0.1% 0.1W, 1/10W Chip Resistor 0603 (1608 Metric) Anti-Sulfur Thin Film
MCT06030D1472BP500
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components |
| Series | |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Vishay Beyschlag/Draloric/BC Components |
| Series | MCT - Precision |
| Resistance | 14.7 kOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 0.1W, 1/10W |
| Composition | Thin Film |
| Features | Anti-Sulfur |
| Temperature Coefficient | ±25ppm/°C |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 |
| Ratings | - |
| Size / Dimension | 0.061" L x 0.033" W (1.55mm x 0.85mm) |
| Height - Seated (Max) | 0.022" (0.55mm) |
| Number of Terminations | 2 |
| Failure Rate | - |
| Base Product Number | MCT0603 |
| Product Attribute |  |
 |
 |
 |
| Part Number | MCT06030D1472BP100 | MCT06030D1470BP100 | MCT06030D1470BP500 | MCT06030D1471BP100 |
| Manufacturer | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

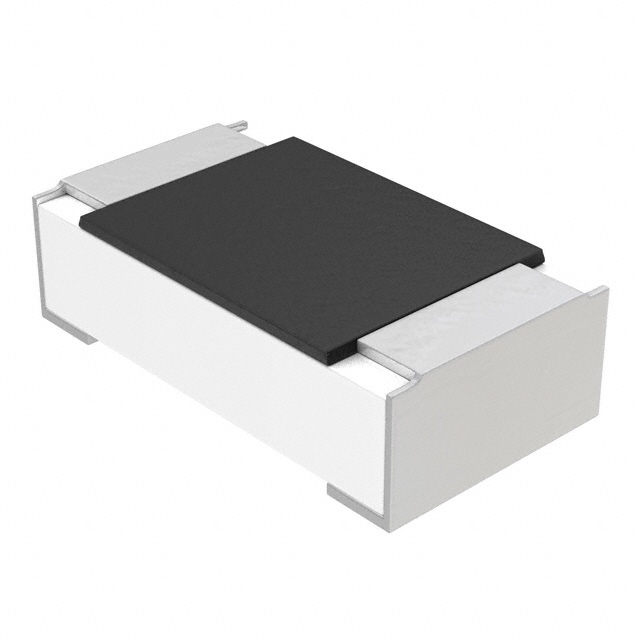

| Description | RES 14.7K OHM 0.1% 1/10W 0603 | RES 147 OHM 0.1% 1/10W 0603 | RES 147 OHM 0.1% 1/10W 0603 | RES 1.47K OHM 0.1% 1/10W 0603 |
| Series | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components | Vishay Beyschlag/Draloric/BC Components |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
